LCD (I2C) issues with pull up resistor

Question

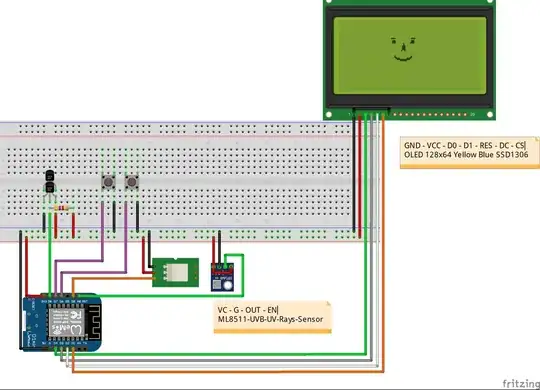

I'm close to finish my first DYI project. But a never seen issue on the breadboard has apprear as soon as assembled.

The LCD is always / totally blank/black.

When I remove the 4.7 K ohm pull-up resistor from my 2 temperature sensors 18b20 the LCD works like a charm but temperature sensor doens't work. If a reconnect the pull-up resistor when the LCD is OK the temperature is displayed.

So it could be a wrong initialisation in my code (maybe during last cleaning) Or a bad way to do this with my sensors and resistors.

I have theory but I'm quite a noob on electronic. What do you think I can do to resolve that ?

Thanks,

. . .

It's a LoLin card an not a Wemos.
