A Candle lamp

Written By: Ut Mio Vu
Published: 28/03/24
  • Comments: 0

A Candle lamp

Published: 28/03/24

Teardown

Introduction

The form of the candle lamp is exquisite, presenting a blend of simplicity and fashion. Constructed from iron, this product boasts durability and easy maintenance. Its operational mechanism involves utilizing a light bulb for heating, which effectively accelerate the candle's surface. The switch is a knot design ,by rotating, the temperature and brightness of the light can be adjusted to the desired levels.

  1. rlwkr4hXVfu5T5KB

    • The product before teardown

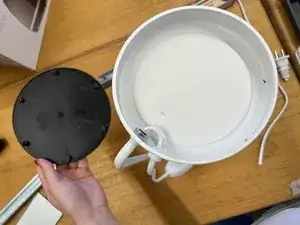

  2. t6Lr3RWdkoYoVBUb

    • The back of the lamp base was pulled off and flipped over revealing the base structure. Here a craft knife was used for the removal.

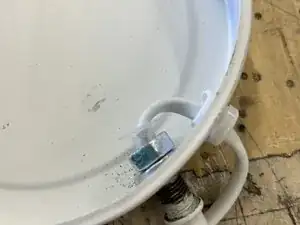

  3. RK1i6wLaUkAXRLQp

    • The white lock to secure the wire and it was removed by a grip and a wire cutter

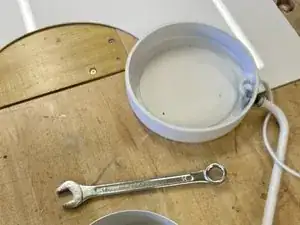

  4. mRLaG4oT5SYHH6Vy

    • The hex nut was removed by the spanner.

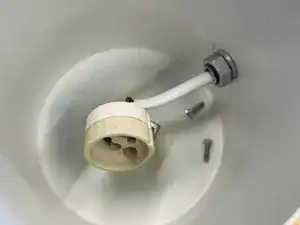

  5. eNfVsbZC5KWNskWp

    • Remove the screws inside the light bulb connector

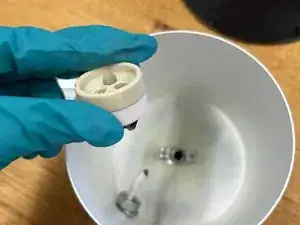

  6. vUe5LBtjAVbIvdf1

    • Cut the connector head and pull out the cable after removing the nut from both sides

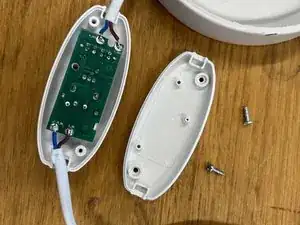

  7. QP4GREYSZtj3Xkmq

    • Remove the control panel case by unfastening the screw

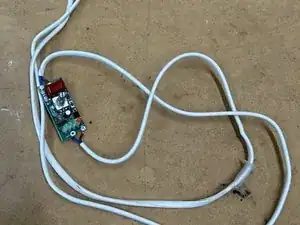

  8. LcbXJE2iYye6VWdx

    • Pull out the cable from the tube

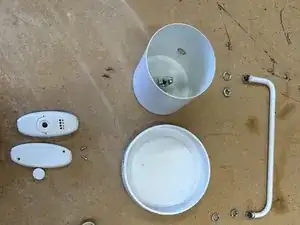

  9. VSDgqAPoDpXOpqyn

    • Separate parts : the nuts , the lamp stand, the lamp shade , the base, the controller case , the dimmerable knot and the screws

  10. FKP1VpSKFL1ZCOnH

    • Here is the close-up shot of the diassembly of the candle lamp

  11. 1tcUm3DpRXALwuWi

    • Finished the product teardown
