What is the purpose of the I/O pin capacitor on the AVR microcontroller?

Question

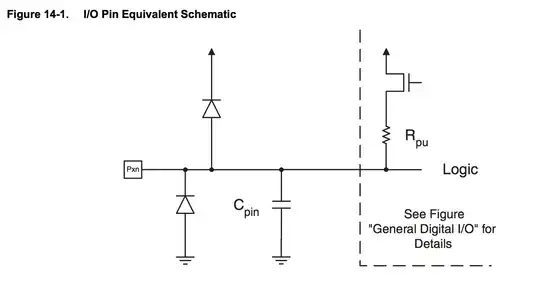

What is the purpose of the capacitor on the I/O pins on the ATmega328 (I imagine it's on other AVR microcontrollers as well)? Is it to reduce noise from other parts of the microcontroller?

score 16 · Accepted Answer · answered May 22 '17 at 14:24

16

To make explicit the implicit parasitic capacitance on the pin.

answered May 22 '17 at 14:24

dannyf

2,730
9
13

6

So, it's not actually a capacitor, but just drawn in to the schematic to demonstrate that the pin has capacitance? – lemontwist May 22 '17 at 14:30
6

Correct. The input is actually the *gate* of a MOSFET. That gate acts *like* a capacitor. So they show it as one in the simplified block diagram. – Majenko May 22 '17 at 14:32

score 1 · Answer 2 · answered Oct 31 '20 at 17:11

The pin does not have a capacitor added to the integrated circuit (IC). Rather this capacitor is drawn to show that the input has capacitance that you need to be aware of.

The input drives a MOSFET - and as we know, MOSFETs have some parasitic capacitance.

For more information on parasitic capacitance of MOSFETs see these pages:
