I know this is Arduino Forum but I think this question is related to programming, I am using ESP8266 for the project. I need to convert the string incoming on the serial through UART lines and receiving those using the below code. Also I am converting the received string to char array as i need to insert some more characters in between hence I need the conversion. I have used 3 different commands to convert the above string into char array as you can see below


#include <SoftwareSerial.h>
#include <Arduino.h>

#include <stdio.h>

#include <string.h>



SoftwareSerial s; //RX TX
using namespace std;
String str= "";
String str_tx;

const char* c;
double buff[24];
unsigned long int str_len = 0;
double val;
char* token;
//char* rest = char_array;
int i=0;
void setup() {
  // put your setup code here, to run once:
  Serial.begin(115200);
  s.begin(115200, SWSERIAL_8N1, 13, 15, false, 256); //115200, SWSERIAL_8N1, 13, 15, false, 512
  pinMode(13, INPUT);
  pinMode(15, OUTPUT);

  Serial.println("in setup 1");
  Serial.println("in setup 2");
  Serial.println("in setup 3");

}

void loop() {
  // put your main code here, to run repeatedly:2
 while(s.available() >0)
 {

  char ch=s.read();
  str.concat(ch);
  if( ch =='\n' )
  { str.trim();
    Serial.println(str);
    str_tx = str;
    Serial.println(str_tx);

    str_len = str_tx.length()+1;
    Serial.println(str_len);
    //char char_array[sizeof(str_tx)];
    char char_array[str_len];
    //strcpy(char_array, str_tx.c_str());
    //str_tx.toCharArray(char_array, str_len);
    std:copy(str_tx.begin(),str_tx.end(),char_array);
    Serial.println(char_array);
    char_array[sizeof(str_tx)] = '\0';
    //char_array[65] = 0;
    str="";
    str_tx = "";
    Serial.println("------------------------------------");
  }
  /*
  str = "";
  str = s.readStringUntil('\n');
  str.trim();
  Serial.println(str);
  str_tx = str;
  Serial.println(str_tx);

  str_tx = str;
  str_tx.replace("\n","");

  str_len = str_tx.length();
  Serial.println(str_len);
  Serial.println(str_tx.c_str());*/

}


}

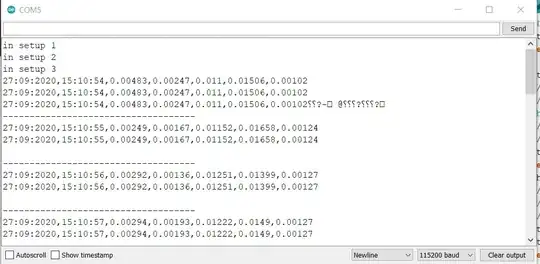

The output of the above code comes as below, you can see the first time conversion occurs but the next time only empty string shows up, in all the 3 cases its showing the same hence I need to find out what exactly this issue is caused by, would appreciate if anyone could thro some light on it. Thankyou ESP8266 serial output

Naren2312
  • 11
  • 1
  • this is not a forum ... it is a Q&A site – jsotola Oct 19 '20 at 15:36
  • insert more Serial.print() statements in your code for debugging purposes ... find out if variables have the value that you expect – jsotola Oct 19 '20 at 16:59
  • 1
    use readBytesUntil – Juraj Oct 19 '20 at 17:20
  • It's not clear what you are trying to achieve. Avoid String objects if you can: see [Reading Serial on the Arduino](https://majenko.co.uk/blog/reading-serial-arduino). If you really need a String object, see [`String::toCharArray()`](https://www.arduino.cc/reference/en/language/variables/data-types/string/functions/tochararray/) or, if you know what you are doing, [`String::c_str()`](https://www.arduino.cc/reference/en/language/variables/data-types/string/functions/c_str/). – Edgar Bonet Oct 19 '20 at 19:00
  • What are these lines for ? These seem to be syntax errors or just don't do anything. //char char_array[sizeof(str_tx)]; char char_array[str_len]; – tavis Oct 20 '20 at 05:53
  • @jsotola Noted. Thanks for the suggestion. – Naren2312 Oct 20 '20 at 11:44
  • @Edgar Bonet Yes thats why I tried using both, thanks for the link I will go through it and let you know! – Naren2312 Oct 20 '20 at 11:44

0 Answers0
