Plotly: what's the difference between ols and lowess trendlines

Question

I'm plotting a dataset with a trendline, but using ols vs lowess gives me significantly different line shapes. I'm sure this is an expected and perfectly normal result, but I'm afraid I don't understand the significance of the difference. Could someone explain what's going on? Here's my code using ols:

fig = px.scatter(df_small, y="Ratio",
                 trendline="ols",
                 trendline_color_override="red")
fig.show()

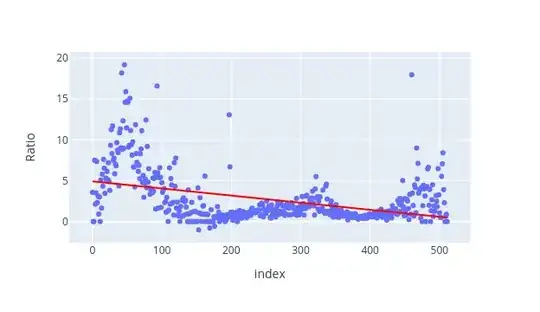

And here's the plot it produced:

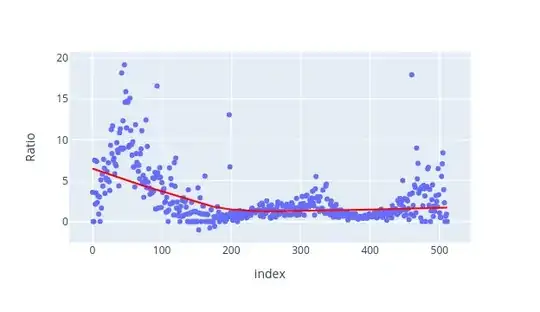

Using lowess gave me this plot: For context, my dataset represents the ratio of daily Covid deaths:new infections in the Province of Ontario over the previous 18 months.

Welcome to DataScienceSE. I don't know the details but essentially these are two different methods to fit the data. But what I notice on your graphs is the use of a logarithmic X axis, I'm not sure it's very good here since it makes most of the points appear together on the right side. In case X represents time, it's definitely not a good idea imho. — Erwan, Aug 13 '21 at 18:21
Thanks. I did notice the X-axis problem and was going to work on that next. — dlanced, Aug 13 '21 at 18:27

score 2 · Accepted Answer · edited Sep 22 '21 at 11:19

I was curious so I looked it up:

The first method OLS is actually Ordinary Least Squares regression so it just fits a linear regression line. It's probably not what you want in this case since it cannot fit the waves (unless you just want to show the overall trend).
The lowess method is local polynomial regression. Since plotly 5.2.1 trendline_option is available to lowess trendlines which can make the trendline follow the underlying data more closely.

For the record I did a small test with R and ggplot2 which seems to have a better implementation:

library(ggplot2)
library(plyr)

t<-seq(0,12,.1)
noise<-rnorm(121,0,.25)
v<-cos(t)+noise
d<-data.frame(x=t,y=v)
ggplot(d,aes(x,y))+geom_point()+ geom_smooth(method="loess")

Thanks! That's exactly what I was looking for. – dlanced Aug 15 '21 at 13:45 — dlanced, Aug 15 '21 at 13:45
