7

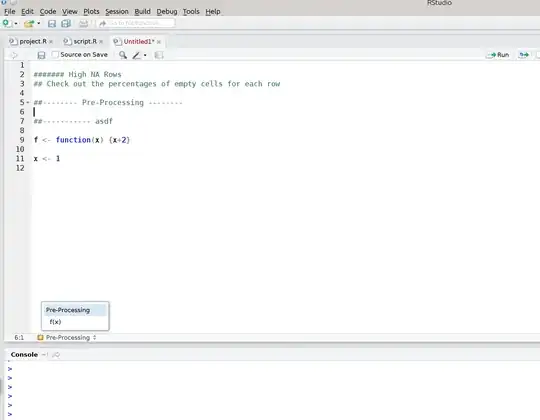

RStudio automatically recognizes headers in an R script that are set via comments:

enter image description here

I would like to exploit that feature, but I don't quite understand what the rules are for RStudio to recognize them as headers. Can someone explain?

Make42
  • 752
  • 2
  • 7
  • 18

4 Answers4

10

Check out Code Folding and Sections:

Code sections allow you to break a larger source file into a set of discrete regions for easy navigation between them. Code sections are automatically foldable—for example, the following source file has three sections (one expanded and the other two folded):

To insert a new code section you can use the Code -> Insert Section command. Alternatively, any comment line which includes at least four trailing dashes (-), equal signs (=), or pound signs (#) automatically creates a code section. For example, all of the following lines create code sections:

# Section One ---------------------------------
# Section Two =================================
### Section Three #############################

Note that as illustrated above the line can start with any number of pound signs (#) so long as it ends with four or more -, =, or # characters.

(highlights by myself)

lukeA
  • 448
  • 3
  • 8
  • 3
    Excellent answer. One tidbit to add is that the RStudio does not appear to feature hierarchically nested code section. That is, regardless of how many `=`'s, `-`'s, or `#`'s you add (as long as it's at least 4), all code sections will appear sequentially at the same level of organization. – Paul de Barros Mar 03 '17 at 15:30
4

RStudio seems to recognize subheaders when they lie within functions. For example:

# SECTION ONE -----------------------------------------------------------------

testfunc <- function(input1,input2,input3){

# SUBSECTION ONE --------------------------------------------------------------
# SUBSECTION TWO --------------------------------------------------------------
  ss2func <- function(x1,x2,x3){

  }
}

# SECTION TWO -----------------------------------------------------------------
Chris
  • 41
  • 4
4

It's kind of ugly but if you want a subsection to fold up inside the section but also be foldable on its own you can use curly braces at either end of the subsection.

# SECTION ONE --------------------------------------------------------------
y <- 11:20

{# SUBSECTION ONE ----------------------------------------------------------
x <- 1:10
}

# SECTION TWO --------------------------------------------------------------

This way you can have subsection one folded while still seeing the code in section one. But if you fold section one subsection one will also be closed.

see24
  • 141
  • 3
3

To have sections, subsections, sub-sub sections

# My Section 1----------
This is my section
#* My Section 1.1-----------
This is my sub section
#** My Section 1.1.1-------------
This is my sub sub section

For further sub-sub-sub....divisions, Just add another star to the beginning of the line..!

EBBY THOMAS
  • 31
  • 2
