I am using a long ranged ultrasonic sensor to measure milk height in milk silos. Milk is stirring.

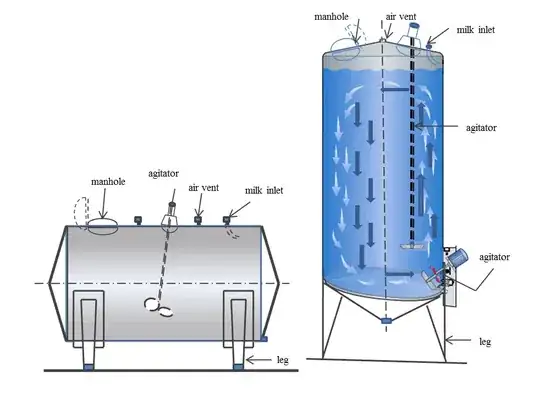

Milk Silos Design: Shows two type of silos both are stirred in different direction

enter image description here

user1586
  • 674
  • 4
  • 15
HoneyBeer
  • 111
  • 2
  • 2
    Welcome to Engineering SE. What is the current accuracy? What type of Ultrasonic sensor are you using? Where is the sensor located? Please update the question with additional details – Mahendra Gunawardena Jun 27 '16 at 10:21
  • ME007ULSV1 sensor. I am planning to install it on the top of silo. I haven't experimented with it, so no accuracy to show. I have read that due to environmental conditions and motion in milk surface, readings will have error. I have checked the time to distance conversion in my arduino code and also I am using espWiFi module to transmit my data. – HoneyBeer Jun 27 '16 at 10:55
  • 1
    @Ravi please edit your question to add the details instead of putting them in a comment. – DLS3141 Jun 28 '16 at 13:38
  • You'll need to utilize some sort of running average on the signal to get a stable reading – DLS3141 Jun 28 '16 at 13:41
  • Thanks you all for replaying. The problem is solved. I got silo mechanical design through which i got the speed of agitator(30rpm). Then I checked the area and volume dispersed by the motor and luckily vertical displacement is not large (2cm top). So, I excluded this from my assumptions. – HoneyBeer Jul 27 '16 at 12:04
