In historical or modern buildings, flat ceilings are typically made of concrete, wood, metal, solid bedrock (for carved tunnels), or generally a material that can withstand pushing forces (pressure) and pulling forces (tension).

A ceiling made from bricks / masonry would typically be vault-shaped, because otherwise it would crash. This is what we find in a lot of historic buildings.

I can so far only remember flat brick ceilings from imaginary buildings e.g. in a roleplaying context or in video games. But I wonder if there are cases where such a thing can be realistic.

In theory, I can imagine two ways to achieve a flat ceiling with masonry:

  • By using very good cement, so the entire thing would behave like one solid piece of rock or concrete.
  • By imitating a vault, in a way similar to how a Fresnel lens imitates a regular concave lens:
    Use slightly V-shaped bricks, and stack them like this, more or less: `\\\|||///``.

My question is:

  • Can this ever work?
  • Does this technique have a name?
  • How far can you go with this, what are the limitations?
  • Are there historical examples?
donquixote
  • 175
  • 7

3 Answers3

5

I had a project around 1976 in the middle east with similar situation. Because of a sudden shortage of cement and re-bars we had to modify the plans for a few thousand homes in several villages that were totally destroyed by an earthquake.

We talked with local masons and people in the industry and modified the plans to take advantage of locally available building materials. Which were burned clay brick and their traditional mortar which was a mixture of gypsum and lime and clay mud mixed with straw.

We adopted the ceilings to two typical modules, rectangular of 10x 16 feet and squares of 20x20.

In both cases we used arches of very shallow rise to width like 3% for the rectangular and 5% for squares, both of them supported buy concrete beams on brick walls. Because of the concern about the future quakes the buildings were re-enforced with concrete vertical tie columns connecting roofs and ceilings to the foundation.

The square ceiling were covered by a pattern of four triangle gently raising up and meeting at a key brick at the center of the room like a big X. The ceilings were surfaced to a level finish by light weight gypsum plaster.

we had to ask the old mason masters to train the young ones the skill and art of laying the bricks without shoring by slapping the new row into a slanted bed of mud covering the last row of brick while making sure there was solid brick to brick connection on each row!

Many quakes, some in the order of 7.8 Richter, have shaken that same area. As much as I know no significant damage has happened.

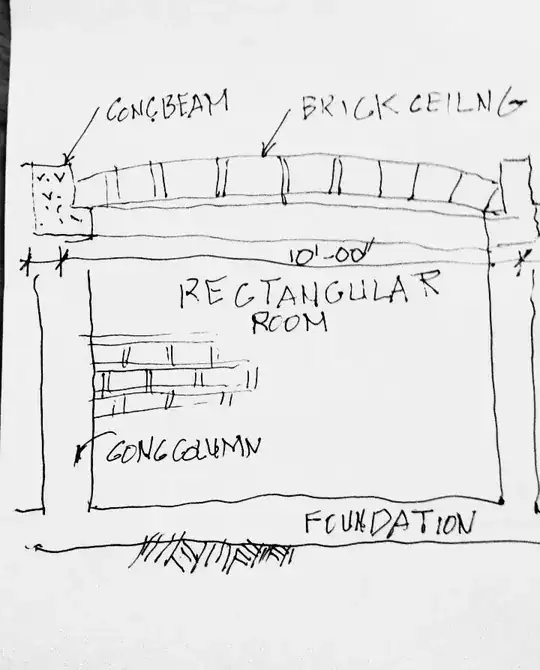

Below you can see two sketches. One is looking up perspective view of the shallow vault ceiling, the other one front view of shallow barrel ceiling. The trick of laying the bricks without forms is too mix the mortar with just the right proportion so it dries with enough strength to hold the dead weight and at the same time give the mason time to work on the bricks. The vault proved to be exceptionally strong and easy to build. The bricks were approx. 2x4x8 inches burned into 400 psi compression strength.

enter image description here

enter image description here

Wasabi
  • 13,048
  • 7
  • 35
  • 61
kamran
  • 21,714
  • 2
  • 18
  • 38
  • Wow! Is "shallow vault ceiling" the technical term for this? Is this completely flat or slightly curved? – donquixote Aug 03 '16 at 07:27
  • I just found this example btw, http://www.arct.cam.ac.uk/Downloads/ichs/vol-3-3279-3296-wendland.pdf – donquixote Aug 03 '16 at 07:27
  • "Is this completely flat or slightly curved?" - i think this is already answered in your text after reading it again. So your masonry has a slight curvature or angle, which is then covered in plaster to obtain a flat surface below and above. – donquixote Aug 03 '16 at 07:41
  • I imagine this does a lot of sideways pressure on the beams it is resting on, right? What stops the building from bursting to the sides? Steel in the concrete beams? – donquixote Aug 03 '16 at 07:44
  • 1
    @donquixote Yes it has a high amount of lateral force. They have tie rods crossing at the 8' o.c. and are usually designed back to back. Also the concrete beams are engineered to take the lateral load. And for a 10' span 4-5 inch arch rise combined with 10" thickness of bricks allows for a 12-13 inch arch compression line. – kamran Aug 03 '16 at 13:29
  • Again I am lost. "8' o.c." ? (Consider that this is not only read by professionals, but also by regular people who want to learn something in their free time, and might not be native speakers! No offense, I totally respect your efforts!) – donquixote Aug 03 '16 at 14:52
  • 1
    @donquixote It means "at every 8 feet off center". So if the length of span is 16 feet there is one tie if it is more there is two ties. – kamran Aug 03 '16 at 17:03
  • I made the other answer the accepted one, because it is more general and gives a good overview of the subject, and I expect it to be more useful to other visitors. But yours is still impressive information. – donquixote Aug 03 '16 at 17:35
5

What you're looking for is called a "jack arch".

The top and bottom are flat, but the joints are angled in such a way that the the parabolic "path of compression" is entirely contained within the layer of masonry.

The loading (e.g., the outward force at the ends) is higher than with a thinner parabolic arch or vault, simply because the extra material is additional dead load.

Dave Tweed
  • 6,824
  • 1
  • 19
  • 34
  • Thanks! I think this is the most fitting and complete answer to the question above, and would deserve to be the "accepted" answer. It is a short answer, but the term "jack arch" leads to historical examples and other reading material, which answers the remaining points of the question. I did accept the other answer yesterday because I was so impressed by the effort put into it, and I think it deserves some credit. – donquixote Aug 03 '16 at 14:37
  • Although.. "arch" suggests this term is primarily used for doorways, and only secondarily for ceilings. Obviously the system is the same. I wonder if there is another term more aimed at ceilings directly. "jack vault" maybe - but this term does not lead anywhere. – donquixote Aug 03 '16 at 14:43
1

Not sure if this counts, but the proprietary Halfen concealed lintel system* achieves flat brick ceilings. It may not count because the masonry is only decorative, not structural - it actually uses steel for the structural support.

See e.g. google image of flat brick arch with halfen concealed lintel.

*Other proprietary systems are probably available from other manufacturers. I'm not sure there's a recognised name for this technique, possibly "concealed lintel" might suffice.

The problem with creating true flat-masonry ceilings is that masonry is very poor in tension - the brick-mortar joints take compressive load but have little to no tension capacity. With a flat ceiling the bottom face of the ceiling will be in tension due to bending stresses.

Theoretically some sort of mortar/epoxy/glue which has tension capacity, and also achieves a tension bond to bricks could work.

AndyT
  • 3,135
  • 12
  • 28
  • A solution where the bricks are decorative is worth to be mentioned for sure. But it seems that "Halfen" is a specific brand, and not the canonical term for this technique. – donquixote Aug 03 '16 at 14:42
  • 1
    @donquixote - True, it's proprietary. I've edited my answer to make that more obvious. – AndyT Aug 03 '16 at 15:00
