This question got into my mind when I am cleaning my motorcycle.

If spring shock-absorbers like the one below absorbs shock from road imperfections, reducing strain in the motorcycle body as your drive, then why does car manufacturers use rigid bumper for cars instead of semi-rigid or flexible bumpers?

Isn't it good for the car that its bumper dissipates some energy in collision so that the time of impact increases, therefore reducing impact force? What are the pro's and con's of this idea?

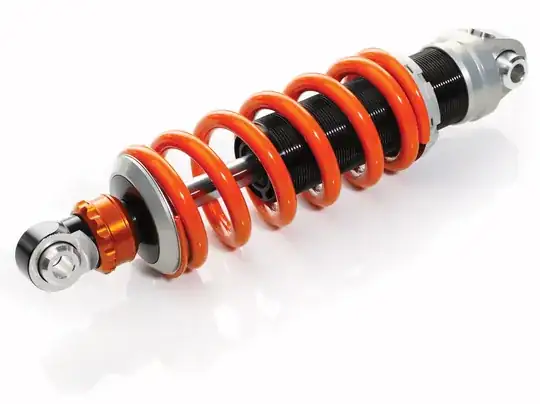

shock absorber

Jem Eripol
  • 860
  • 5
  • 16
  • Your picture is of a spring and a damper (shock absorber), are you referring to one part or both together? Do you understand the difference between a spring and a damper? – John U Dec 13 '17 at 13:32
  • 1
    Not just the bumpers: the entire car body & frame are now designed to crumple & shatter to absorb energy. Back in the 70s, Volvo touted their absolutely non-damageable frame but later realized that the car was surviving but not the occupants. – Carl Witthoft Dec 13 '17 at 16:12
  • @JohnU, yes that is a shock absorber. There are a lot of shock absorbers available in the market. I am particular on the type, the question focuses on the rationale behind the idea. – Jem Eripol Dec 14 '17 at 01:10
  • @CarlWitthoft, I wonder how to save both. In minor collisions, it should protect the car, whereas in major accidents, it protects the passengers. – Jem Eripol Dec 14 '17 at 01:12
  • 1
    @JemEripol well, the original hope was for a bumper system which took zero damage up to maybe 8 km/h, and above that point things "snapped" and crumpled. As others wrote, desirable looks won out over functionality. – Carl Witthoft Dec 14 '17 at 12:41
  • Volvo fitted shock absorbers in their 7-Series (740, 760) bumpers but they can explode in a car fire - mythbusters actually tested it. – John U Dec 14 '17 at 12:56
  • @CarlWitthoft, so sad but design engineers should really go through serious safety concern first than aesthetics. I know that crumple zone as mentioned below helps, but going through some thoughts, having shock absorbing bumpers help others too. This is in the case in which bigger trucks collide with smaller cars. Smaller cars will have some sort of less mortality if there are dissipation of energy from bigger cars. I certainly think that these "bumpers" will not bounce back bigger cars. :) – Jem Eripol Dec 15 '17 at 01:47
  • @JemEripol just watched a youtube video of the police in the UK dealing with a car hit by a 44 tonne lorry .. As the car ended up to be less than 2 metres long when it started at 4.5, sadly driver was killed - you will be extremely rich and popular if you can design a bumper that will prevent the consequences of that type of accident ... – Solar Mike Dec 16 '17 at 22:29
  • @SolarMike, I am not talking about "all" accidents. No one can design like that. I am thinking into the rationale why people go for rigid than semi-rigid. Not all accidents happen like that too. There are still a lot of factors to be considered, but I would like to focus on simple things. :) – Jem Eripol Dec 19 '17 at 11:52

3 Answers3

8

To answer your later questions first:

Isn't it good for the car that its bumper dissipates some energy in collision so that the time of impact increases, therefore reducing impact force?

Yes, it is good, for the reasons you describe. Your misconception, however, seems to be that a "rigid" bumper would not do these things. The bumper, and indeed much of the car bodywork constitutes a "Crumple Zone", which is designed to exhibit exactly the behaviour you describe, by increasing the impact time, and reducing the consequent peak force.

To answer your first question:

If spring shock-absorbers like the one below absorbs shock from road imperfections, reducing strain in the motorcycle body as your drive, then why does car manufacturers use rigid bumper for cars instead of semi-rigid or flexible bumpers?

The key difference between using a spring to reduce the impact force vs using a crumple zone, is that the spring returns that force. In a big crash, you really don't want to be bouncing backwards. Bumpers are optimised for safety in an emergency, rather than day-to-day driving into things, as it were.

Community
  • 1
Jonathan R Swift
  • 7,727
  • 1
  • 14
  • 27
  • I saw technologies implemented in bridge construction wherein the dampers are rigid when there are no irregularities in the structure, and flexible when there is a need to. – Jem Eripol Dec 14 '17 at 01:14
  • What about using opposing magnets as a bumper? –  Apr 13 '18 at 10:33
  • under the rubber bumpers? –  Apr 13 '18 at 10:34
  • Cost, I imagine - it would cost a lot for a magnet that was suitably strong to prevent damage *in an emergency crash*, and that would only be helpful if *every other car used the same system*. As it is, most cars are passively magnetic, and you'd be attracted towards them, instead of repelled. – Jonathan R Swift Apr 13 '18 at 14:23
3

it is a good idea. 70 years ago, bumpers were built out away from the bodywork by about 5" to 6" to take hits without damaging the car, but styling changed and by 60 years ago, bumpers became part of the bodywork. 40 years ago, shock-absorbing bumpers were required by law in the USA, but they made the cars look ugly so people didn't like them. the law was revoked and now the bumpers do not have to sustain shocks without damage.

niels nielsen
  • 13,033
  • 1
  • 11
  • 30
0

The difference is the amount of crash energy dissipated and limited play course of a spring loaded dumper. The energy absorbed by a spring is the area under force line: 1/2 k.x^2.m. - m is the bumper mass. which is very small compared to inertia of the car. And at the end of it's course it delivers the huge leftovers of impact energy to the rest of the car while now adding it's own mass to attacking car's inertia.

The idea behind integrated crash structural design is a highly energy absorbing gradual and ductile crumpling of the entire structure surrounding the occupants as a scrifice zone while reducing the negative acceleration to tolerable levels. No loose part is going to be of any help. If you look at the corrogated pressed patterns on the body frame of the new cars you see they have been designed to absorb much energy in a crash while crumpling away from the cab of the car. You will have the entire front of the car's mass and length to help dampen the impact.
