3

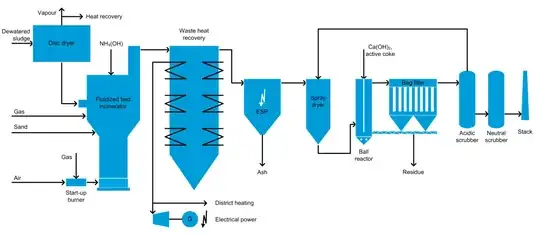

I have read about the application of sewage sludge incinerators1 but they do not have a net-positive power-generation. enter image description here Is there a way to generate net-power from sewage sludge? What are the processes to do so?

1: German: www.berlin-klimaschutz.de/...

rul30
  • 1,202
  • 8
  • 24
  • If the sewage does not burn on its own then it is not going to generate power. Cannot change that with a process. – paparazzo Jan 23 '18 at 23:02
  • Check on Cook Co. , IL ( Chicago) : they have been incinerating wet garbage for decades . – blacksmith37 Jan 23 '18 at 23:37
  • 1
    @blacksmith37 Is Cook Co. generating power? – paparazzo Jan 24 '18 at 00:55
  • @Paparazzi I am under the impression, that you could dry it with the heat of the process. – rul30 Jan 24 '18 at 05:26
  • Possible duplicate, see : https://engineering.stackexchange.com/q/13040/10902 – Solar Mike Jan 24 '18 at 07:13
  • @rul30 Sewage needs generate the required heat. I don't think it has the heat content. – paparazzo Jan 24 '18 at 10:27
  • Sewage sludge doesn't really have a guaranteed caloric content. Then again, if you could convince its hydrogen content to fuse, you'd have plenty of energy released. Don't count on that process being viable in the near future :-) – Carl Witthoft Jan 24 '18 at 16:54
  • @SolarMike: the answers at the cited questions are very general, I was looking for a specific answer or calculations/simulations. – rul30 Jan 24 '18 at 21:44
  • @rul30 then you may have to work from the information supplied yourself... – Solar Mike Jan 24 '18 at 21:47
  • I don't know if Cook Co / Chicago Sanitary District made power , but years ago they were a technology leader in garbage incineration . – blacksmith37 Jan 25 '18 at 22:19
  • Paraffin-like substances used as fuel for candles are currently made from fat extracted from sewage - apparently there's a plenty of it. Their burning certainly produces energy, although I have no clue what process is used to extract that fat. – SF. Jan 26 '18 at 14:18

2 Answers2

1

In order to make use of it as a fuel, you could consider these options:
- Processing the stuff with micro-organisms like bacteria that can create methane from it, or other usable fuels.
- Drying it and using it directly as a combustible fuel. The dryer you can get it, the more efficient your combustion will be.(less energy will be wasted to vapourising the water it's containing)
- You can gassify it after it's been dryed, like they do with wood. This gets you a more versatile/dense/clean end product.

But all this will waste a lot of other usable components within the sludge. Granted that the sludge isn't contaminated, I suppose it would be best to use it as fertiliser. Almost all of the components will be put to use then.

You could also extract usable compounds that are present abundantly enough, like ammonia. You can sell that to fuel manufacturers to make ad blue from. That way, our pee/poo will contribute to a cleaner environment.

Bart
  • 1,164
  • 5
  • 11
0

In order to generate net-positive power from sewage-sludge the chemical energy contained in the the sludge needs to be big enough in order to:

  1. Dry the sludge to an acceptable level
  2. Overcome all process inefficiencies

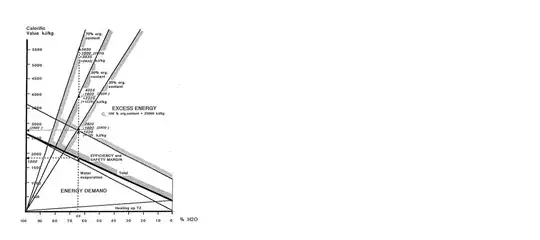

In a study from Dieter O. Reimann1 the necessary energy content to maintain incineration of different wast types was calculated. enter image description here Reimann concludes:

To achieve self-propagating incineration, a minimum calorific value in the sewage sludge app. 2,500 kJ/kg above the energy required for drying should therefore be aimed at.

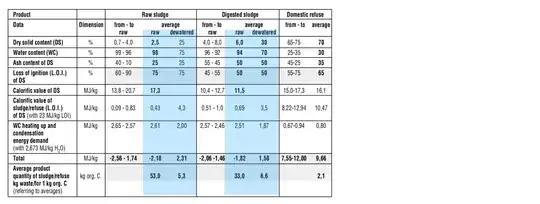

An overview of the properties of sewage-sludge shows that even in dried form sewage-sludge is under the minimum value of 2,500 kJ/kg. enter image description here

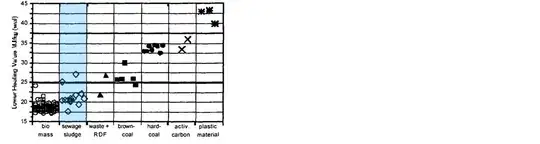

A energy-content of 20MJ/kg for dried sewage-sludge is reported by Gerhardt et al.2: enter image description here

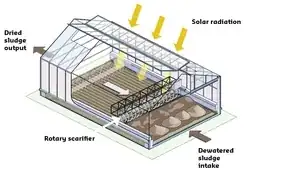

This means there exist the possibility to produce electrical-power using sewage-sludge if the water-content is low enough. Which could be achieved by a solar-thermic-process3.

enter image description here

[1]: Problems about sewage sludge incineration, founded by the European Union
[2]: Fuel Characteristics Of Sewage Sludge...
[3]: Universität Hannover - ISAH
