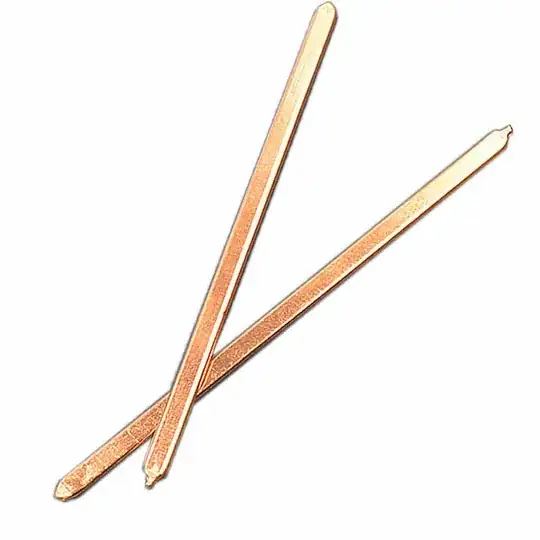

I have purchased these copper heat-pipes; however, I am wondering how to bend them without kinking them or cutting them open due to pressure on weak points/bends.

enter image description here

These are flat copper heat pipes, so I can't use a pipe bender; however, these are sold specifically to be bent, according to descriptions, so I was wondering if anyone here has any experience or tips for bending these flat copper heat pipes.

To be a little more specific, I want to make a 90 degree bend in the middle of the copper heat pipe, without making kinks (which degrade performance).

Furthermore, would wrapping copper foil around the heat pipes allow for greater thermal dissipation? Apparently some computer modders have seen success; however, I thought it would be appropriate to ask opinions here as I will try to wrap copper foil set in place by thermal paste to the heat pipes.

peterh
  • 2,419
  • 4
  • 28
  • 44
  • So, follow the instructions about bending that surely came with the things - or did these "fall off the back of a lorry"? – Solar Mike Feb 22 '18 at 16:53
  • @SolarMike they did not come with instructions, just purchased them off some knock off website –  Feb 22 '18 at 17:04
  • Get your blow-torch out and heat them up where you want to bend them. – Trevor_G Feb 22 '18 at 17:06
  • Copper foil with paste may add a little better mechanical coupling if you do it right, but paste would need to be very thin and any voids will make it worse. – Trevor_G Feb 22 '18 at 17:08
  • @Trevor_G I've been hearing that the gas inside will explode if I use a blow torch –  Feb 22 '18 at 17:08
  • There is gas inside? I thought they were solid..Got a link? – Trevor_G Feb 22 '18 at 17:09
  • @Trevor_G https://www.aliexpress.com/item/8x3x250mm-Flat-Copper-Heat-pipe-Heat-sink-Radiator-Cooling-Laptop-CPU-GPU-Video-Card-DIY/32765311529.html I think it is pressurized fluid, according to people on forums, but once it gets heated it could explode inside the heat pipe (enough heat to the point the copper bends easily) –  Feb 22 '18 at 17:11
  • It's most likely water, tetrafluoroethane or ammonia. They transport heat from the hot end to the cold end by phase change. Heat evaporates the liquid, it flows to the cold end, condenses, and travels back to the hot end via capillary action through some wick medium. https://en.wikipedia.org/wiki/Heat_pipe – Dampmaskin Feb 22 '18 at 17:15
  • @Dampmaskin I'm scared to heat it with a blow torch because so many people on "pc modding forums" have said that excessive heat (like from a blow torch) will basically turn the heatpipe into a pipe bomb due to pressurized liquid expanding. –  Feb 22 '18 at 17:16
  • @Dampmaskin hmmm... I guess heat-pipe has more than one meaning. Interesting. That changes things a tad, and yes, blowtorch may be a bad idea. – Trevor_G Feb 22 '18 at 17:21
  • @Dampmaskin if you figure anything out, please tell me! I hear custom molds can slowly bend the copper heat pipe into shape. –  Feb 22 '18 at 17:26
  • Your best bet may be to buy a few and experiment with bend radii. Unless you can find a link to the actual manufacturer... and ask. – Trevor_G Feb 22 '18 at 17:28
  • 3
    Wear eye protection when experimenting... Next time buy from a reputable supplier so you get instructions - it could save your life... – Solar Mike Feb 22 '18 at 17:37
  • In fabrication of heat pipes with complex custom shapes, the shape is done first, then filled with liquid, and sealed after that. Unless the bending is only modest, you are out of luck. – Ale..chenski Feb 22 '18 at 18:15
  • Have you even **tried** bending one, say around a mandril? You have no data so far to indicate that that will fail. – Carl Witthoft Feb 22 '18 at 18:53
  • @Carl Witthoft I will research this more as people have said this has worked for then; however, I don't really know a mandrel bender is but I will look into it. –  Feb 22 '18 at 18:58
  • 1
    fwiw these things appear to be meant to be bent flat-wise http://www.aliexpress.com/item/For-David-Moreno-Customized-DIY-laptop-CPU-GPU-brass-heatsink-super-heat-pipe-graphics-card-cooling/32576952111.html. If you kink it at all you will pinch off the working fluid and it wont work. – agentp Feb 23 '18 at 02:04
  • @agentp I think you nailed it -- recommend posting that info & link as an answer. – Carl Witthoft Feb 23 '18 at 13:50
  • @agentp why do you say it is meant to be bent flat wise? The person in the video is bending on the curved side, short side, not the flat side –  Feb 25 '18 at 01:20
  • i base that on dozens of pictures i've come across, all flatwise. Dont know what video you reference. – agentp Feb 25 '18 at 23:44

1 Answers1

2

Copper is notoriouos for hardening and breaking under bending or hammering it, or working it any other way. To keep it soft and flexible, you have to anneal it often while working on it. It also bends easier and breaks less soon when you bend it while it's hot. You can heat it with the torch, but you're right about exploding it, getting it too hot may get the pressure too high, and the pipe may pop. Especially since it's filled with some kind of chemical, that may be dangerous. So at least wear goggles and gloves, but rather a full face mask and clothes that cover your arms. Since the pipe is so small, and probably filled with little fluid and mostly gas, i think it will rather 'pop' than explode, but still it can be dangerous.

To bend it you can cut three disks from eg. aluminium or any metal. The middle one will have the radius of the inner radius of the pipe bending, the two outer disks will have that radius, plus the width of the pipe. They will keep it from twisting while you bend it. To minimise the risk of breaking the pipe, keep the radius of your bend as large as possible. Heat the pipe and start making a small bend of a few degrees, reheat it again and bend it a few degrees further, repeat until bent enough.

You're right about your foil thing. Heat pipes are the most effective thing in transporting heat, not dissipating. They just relocate the heat from the source to somewhere else. You can't really get rid of any heat with just heat pipes. That's what you need a heatsink for. A heatsink is meant to dissipate heat. So it has to have a large surface, preferably close to the source. Heat pipes are used in laptops since it's not possible to put the heatsink onto the processor. Thus, a heat pipe is used to transport the heat to the side of the laptop, where the heatsink is located. Thermal paste is used for a proper heat conduction between heatsink and heatpipe or source. Keep the paste layer as thin as possible.

Copper is the best material for conducting heat, but aluminium is often used since it's cheaper. I'd rather buy a good heatsink than try and craft it yourself. It probably won't be as effective. When searching for a heatsink, look for the right C/W rating. It basically means how hot it will get when dissipating a certain amount of heat.

5C/W means it will get 5C hotter for every Watt of power it has to dissipate. When you know the temperature you allow, and the power you have to dissipate, you know how much C/W you need for a heatsink. So lower is better. You can put a fan on the heatsink to make it dramatically more effective. C/W rating is mostly for still air.

Bart
  • 1,164
  • 5
  • 11
  • Thank you very much Bart! So, in your eyes, wrapping copper foil as I explained with thermal paste is a good idea? Also, what's the purpose of selling these copper pipes if they can't be bent easily at all? –  Feb 22 '18 at 18:57
  • @OmarSumadi It's better certainly than nothing, but just copper foil isn't ideal for releasing the heat into the air. Study the design of radiators to get an idea for an optimal design. As others already implied, it could be that this is a batch that couldn't be sold for whatever reason, and thus they dump it onto the public market. Just like all the stuff you can buy on AliExpress etc. You can't bend it easily, but OEM manufacturers can. They have special tools and machines. And it's also possible for them to fill the pipe after bending. – Bart Feb 22 '18 at 19:52
  • The working fluid in copper heat pipes is most likely water. Especially if they are meant for electronics cooling (with operating temps between 20-150°C). – ratchet freak Feb 23 '18 at 10:53
  • @ratchetfreak Could be, but nothing is know about the heat pipes in question. I've hear them being filled with ammonium or other substances also. – Bart Feb 23 '18 at 12:15
  • I think it would probably not explode if it fails, just rupture at an end or along an edge. But I am quite sure that the result is not a 'pop' in any way. It is a sharp and loud bang. Very very loud. The pressure energy that was enough to rupture a metal pipe is converted into a bang, roughly 100% of it. In the beginning of the expanding gas bubble, around the rupture, I think it is even expanding supersonic, not sure about that, And because of the small spacial volume of gas, you would not be inside the supersonic bubble. – Volker Siegel Nov 28 '19 at 04:54
