I basically need a block on a shaft to rotate between 90 degrees (vertical) and approximately 180 degrees (horizontal) counterclockwise on a shaft. I don't want the part to fall below 180 degrees. At 90 degrees it will clip into a stand so clockwise rotation does not need a part preventing rotation. Please advise on a way to prevent clockwise rotation after a certain angle. Thanks :)

sarah
  • 11
  • 1

1 Answers1

1

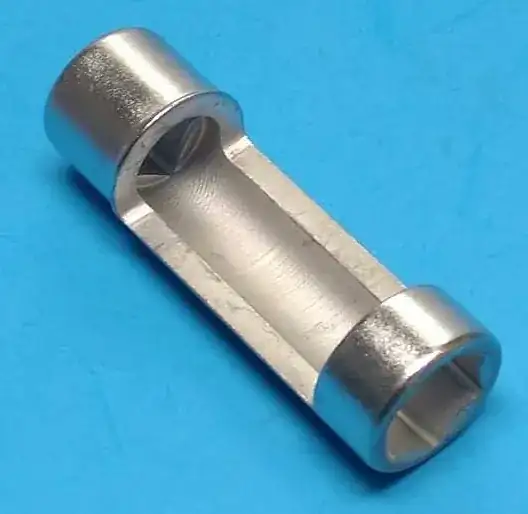

Ok, so completely not the best image, but if you have the shaft with a hardened pin fitted - the angular width of the slot can be adjusted to control the angle of rotation and it only needs to match the width of the pin...

enter image description here
