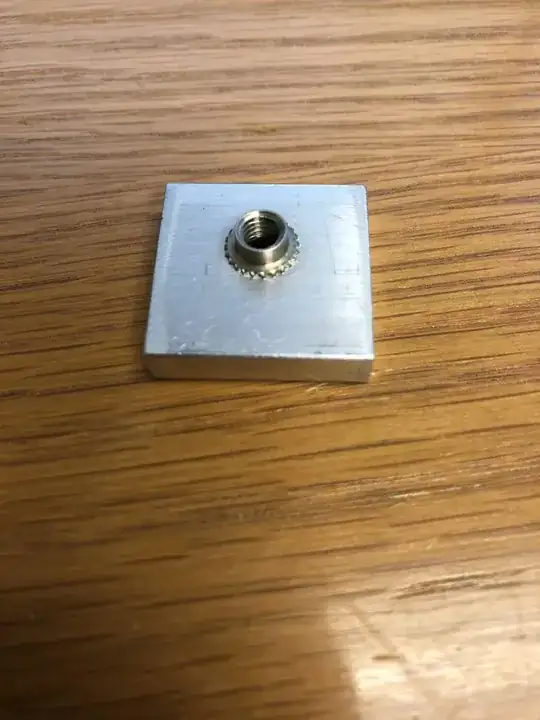

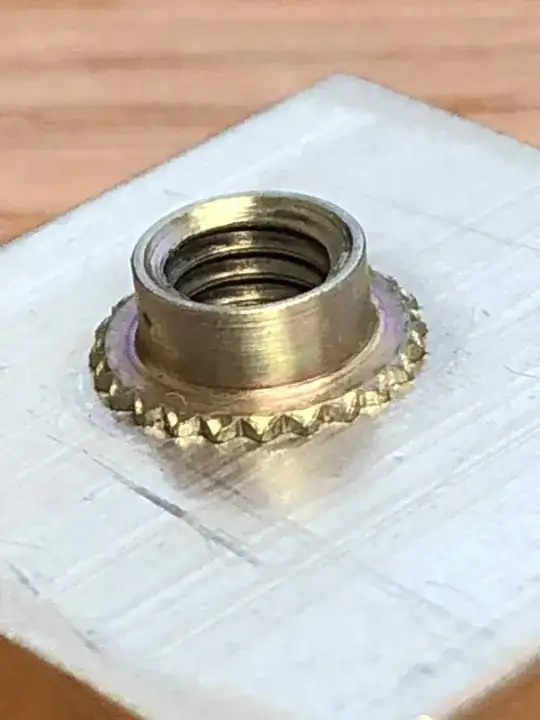

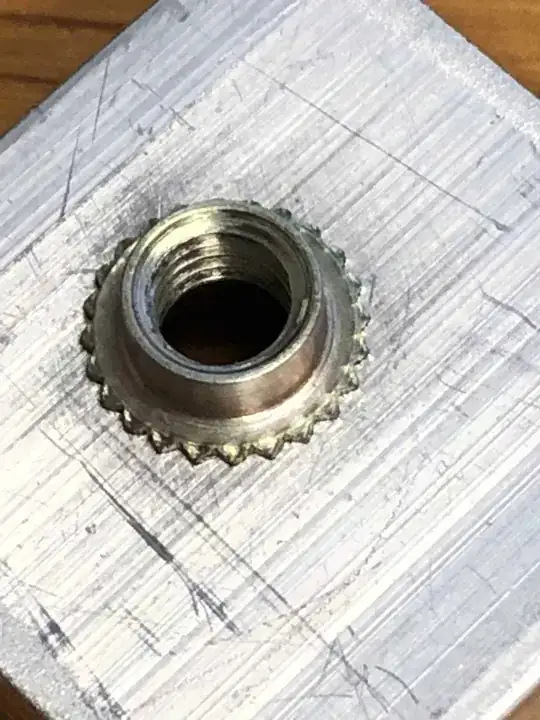

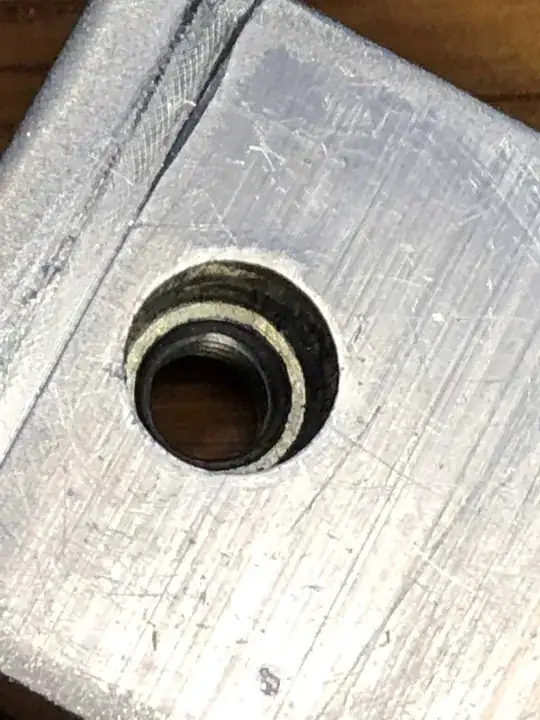

I received these fittings as part of a package, but now we need more of them. Can anyone identify this assembly, or even better help me learn how to recreate it? My coworkers and I are stumped.
Pictures: https://imgur.com/a/1sq4lOK
Thanks!
Asked
Active
Viewed 157 times
1
-
Search for M8 press fit nuts or M6 - not sure – Solar Mike Jun 21 '18 at 14:33
-
Measurements may be useful, or even required. – hazzey Jun 21 '18 at 15:34
-
These are also referred to as "Broach nuts" in some industries. – Jul 03 '18 at 07:29
-
In addition to the answers below, look up Rivnuts. – Phil Sweet Oct 03 '18 at 21:35
2 Answers
1
There's really not enough information to be certain, but the images seem to match TR Fastenings' "Self Clinch Non-Locking Mini Squeezed Nut"
N.B. It also looks to have been improperly installed, as the 'spiked' diameter should be fully embedded in the bulk material.
Jonathan R Swift
- 7,727
- 1
- 14
- 27
0
Those are "press fit" or "captive" nuts. Mcmaster Carr should have whatever your looking for.
Corey
- 434
- 2
- 10
