I am trying to select a BLE module for low power application. I have looked into different BLE modules from different chip manufacturers. For example:

  1. ISM78G1D Bluetooth Low Energy SIP from Inventek
  2. Blue Gecko BGM13S Bluetooth® Module - SiP from Silicon Labs
  3. SimpleLink Multi-Standard CC2652R Wireless MCU from TI
  4. EZ-BLE and EZ-BT Bluetooth Modules from Cypress
  5. nRF52840 from Nordic Semiconductor
  6. Samsung ARTIK™ 020

I am in the process of learning strategies on selecting a BLE module given a few choices. The application will be used in a low power application which includes a sensor to detect objects. We plan to connect the BLE module to the host micro-controller controlling the sensor. The BLE module will communicate to a Gateway (currently being defined) that will transmit the data to the cloud.

Appreciated if someone can provide some guidance on what criteria to use when selecting a BLE module. Thanks for your help!

706Astor
  • 1,054
  • 1
  • 8
  • 19
Nil_2018
  • 350
  • 1
  • 9
  • As-is, this question is far too broad. The relevant characteristics depend on your particular use-case, and what's... well, relevant to you. Please [edit] your question describing your case and what characteristics are important to you. We'll then try to convert those to the relevant technical specifications. – Wasabi Oct 31 '18 at 23:23
  • 1
    @Wasabi, thanks for your feedback. I am rewording the question. – Nil_2018 Nov 01 '18 at 14:49

1 Answers1

1

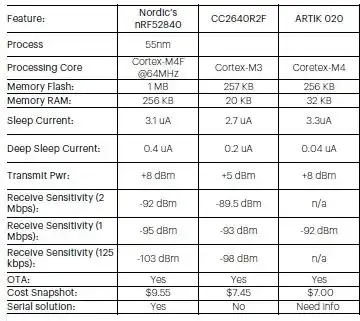

Looking at if the device supports BLE 4.0, 4.1, 4.2 or 5.0 is a good start. Not all BLE modules are 5.0 capable. What type is distance range might be a parameter to consider some BLE module have line of sight range of 1km or more at a low data rates. Below is a short side by side comparison to help get started.

enter image description here
