I found this switchable coupling in Rollof/Matek machine elements, i have never seen this kind of coupling before.

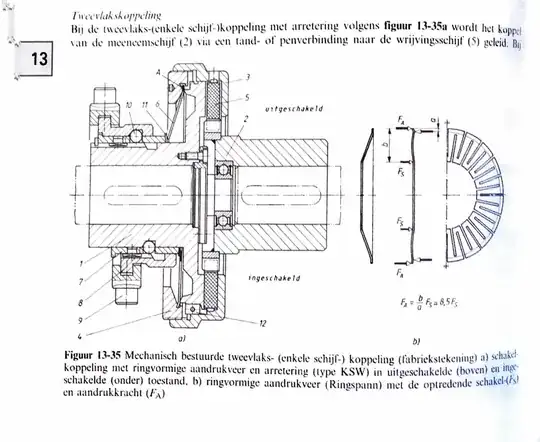

enter image description here

According to the dutch edition its name is:

Tweevlakskoppeling

Which literally means Two-surface coupling

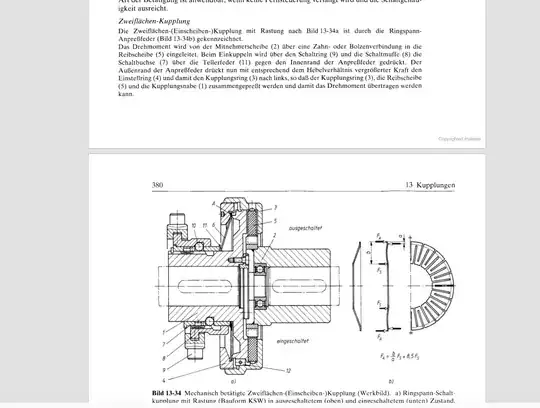

After some research on the web i couldn't find any reliable information, i thought the translation is wrong, then I checked the original edition in german, apparently, the name is correct. The original edition:

enter image description here

Can someone identify this coupling?

Sam Farjamirad
  • 1,897
  • 2
  • 15
  • 29
  • 1
    Okay, you have a mechanical fingerplate clutch with a fussy throwout bearing. Why the fussy bearing? It would let you have zero hold-in force against the bearing. I tried for an hour to find one like it and couldn't. – Phil Sweet Jun 18 '19 at 22:34
  • @PhilSweet I really appreciate your effort, i guess this is just a concept, and there is yet no commercial prototype exist. – Sam Farjamirad Jun 19 '19 at 08:47
  • 1
    Either that or they quit making them 50 years ago. I can see one of these being connected to a great big hand lever on an old sawmill drive. – Phil Sweet Jun 19 '19 at 09:29

1 Answers1

1

Look for overrunning clutch or power transmission elements.

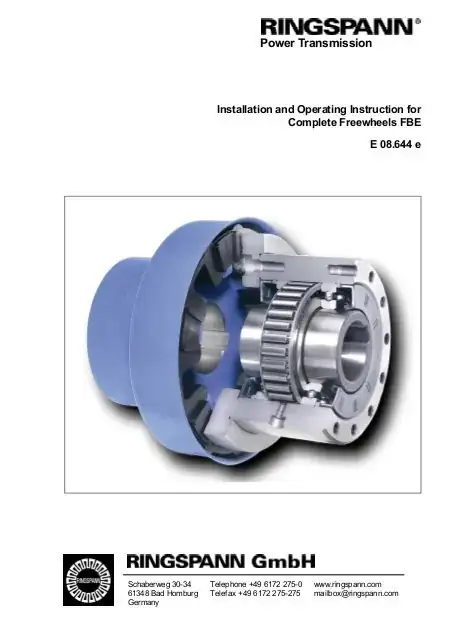

enter image description here

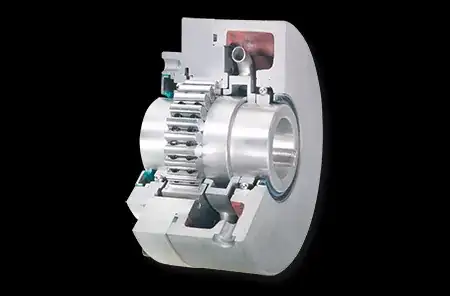

enter image description here

You may find a lot of info in Ringspann site: Ringspann power transmission section

Or here: Ringspann catalogue

Yaniv Ben David
  • 448
  • 4
  • 13
  • I checked the websites thank you, but this seems whole other mechanism, i looked at the catalogue, the coupling (mine) follows the same mechanism as a regular car clutch, the only difference is the locking system number 10 in my sketch, however in your links, this kind of locking system doesn't exist or at least i don't see it. – Sam Farjamirad May 19 '19 at 18:05
