Unable to install Actuators to a LABVIEW based Engineering Test System

Question

I need to install an actuators to LABVIEW base test system because the old actuators are defective. We cannot purchase the old actuators because they are obsolete. The old actuators communicated using the COM ports 1 and 8. The COM port are hard coded in the LABVIEW program. The new actuators communicate via a USB interface. But COM ports 1 & 8 not available. The systems states that they are "in use".

The LABVIEW based test systems is running on a Window 7 machine. Is there a way to point the new actuator USB interfaces to COM port 1 and 8?

Answer 1

What you might need to do is to remove the "in use" port and then assign the respective COM port. Follow is a suggested set of steps.

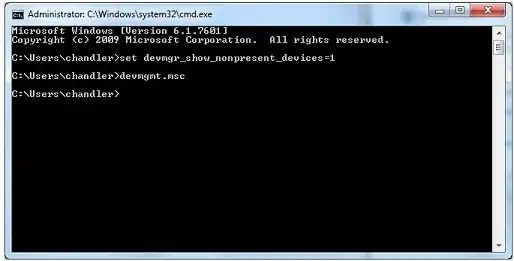

• Open command prompt (Start > Run) and type: cmd
• At the prompt type: set devmgr_show_nonpresent_devices=1

• Followed by C:> devmgmt.msc


  _{Click on image for a larger version of the image.}

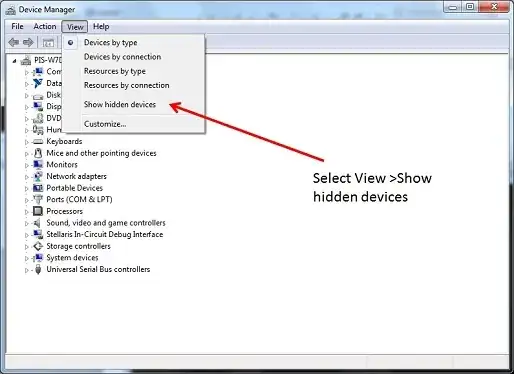

• Next in the device manager view > Show hidden files

_{Click on image for a larger version of the image.}

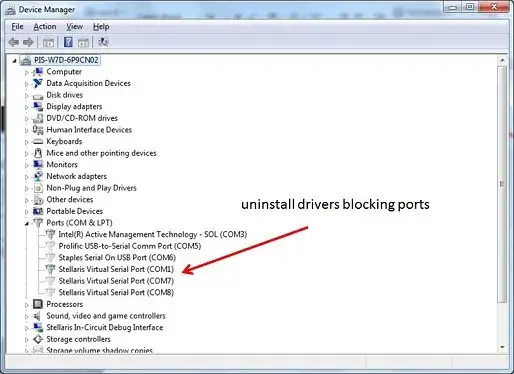

• Expand COM by clicking on the "+" and uninstall the COM ports

_{Click on image for a larger version of the image.}

• From device manager select the COM port that the device is currently attach to and right click

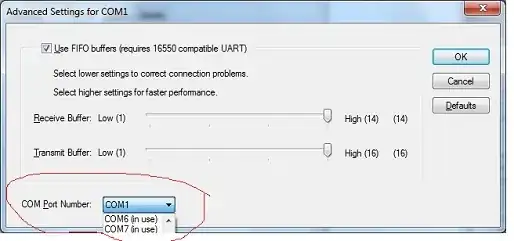

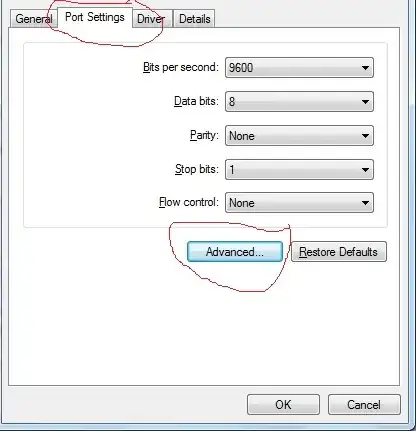

• Select Properties -> Port Setting -> Advance -> Assign the desired COM port from the drop down

_{Click on image for a larger version of the image.}

Let me know how it works out for you
