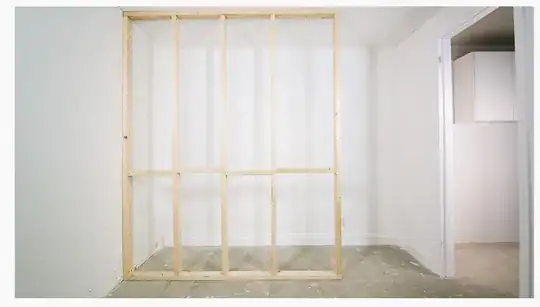

I assume this wood framing is the wall stud.

enter image description here

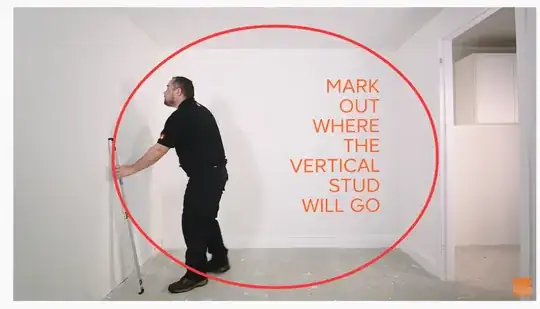

My room looks like as follow with concrete walls

enter image description here

In order to soundproof external noise into my room (red circle), do I need to build wall stud?

zghqh
  • 123
  • 3
  • what are you soundproofing from? external noise? noise into that small room? Common sense practice is to fill that stud wall with insulation just in case. – Solar Mike Jan 28 '20 at 09:13
  • What level of sound-proofing do you require? From what sort of external noise, at what sound level? – 410 gone Jan 29 '20 at 06:24
  • @EnergyNumbers Does level of sound-proofingmean STC rating? – zghqh Jan 29 '20 at 06:47

1 Answers1

1

The way I have seen it is to use 2 X 6 on each end and floor and ceiling of the wall then build two separate walls with 2 X 4. Stagger the 2 X 4 in the walls so the only solid contact for sound conduction are the 2 X 6 ends. Fill the space ( now 5.5" instead of 3.5" ) with insulation. The result is little solid contact ( at the ends) for conduction and a thicker sound absorbing insulation. I was describing a partition wall , but essentially you could put the same thing against a concrete wall ; The important factor , you don't want 2 X 4 touching both wall surfaces as they would conduct sound.

blacksmith37
  • 6,057
  • 1
  • 8
  • 15
  • Thanks for your answer. In your solution, which part is close to the concrete wall, the stud or something else, if the latter, then what is that? – zghqh Jan 29 '20 at 06:51
  • The 2 X 6 one the ends and floor touch both walls but the 2 X 4 do not. – blacksmith37 Jan 30 '20 at 15:15
  • With a concrete wall in behind, couldn't you just build a standard 2x4 stud wall and leave it ~2" off the concrete wall and fill the void with sound insulation? save yourself the need of a couple of 2X6 – Forward Ed Feb 12 '22 at 12:21
