My house has several transfer grilles like this:

Transfer Grille

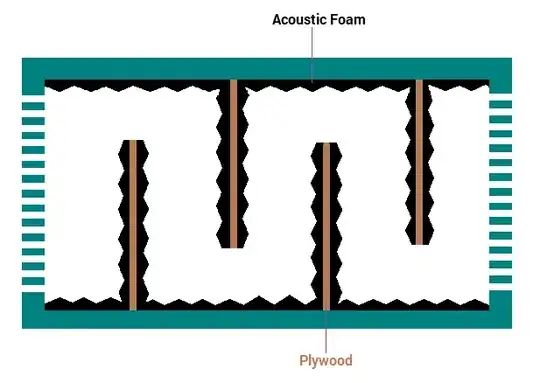

Except they have no baffles inside them, so light and sound come through into our bedrooms quite easily. I'd like to put in a sound maze like this to block light and sound:

Sound maze

My concern is that I will be restricting air flow enough to impact the HVAC system's effect on these rooms when the door is closed. Is that a valid concern, and if so, what considerations should one make to maximize air flow through a sound maze like this?

Community
  • 1
John
  • 111
  • 1

1 Answers1

1

Yes, it is definitely going to impede the circulation of air. The fan of the HVAC blows the air very gently, so much so that for a large room one register maybe not enough.

For blocking the light you could try hanging a small drape 12 inches in front of the grill.

If the noise is really a nuisance the only effective solution is to connect your grill directly vis a flex duct to the HVAC system.

You can hide it in a cosmetic soffit.

kamran
  • 21,714
  • 2
  • 18
  • 38
  • I'm trying to get a sense for how much it would impede the circulation of air. A little bit is acceptable, but a more than 50% air flow reduction would be a bad outcome. My understanding is that the air would flow faster through a smaller opening, but then friction and turbulence would reduce the volume of air flowing. I'm trying to figure out to what extent these things offset each other. – John Apr 24 '20 at 14:17
