I am building a cabinet that has a hidden inner cabinet that is meant to rise up out of the former. The inner cabinet needs to rise 500mm and needs to support a maximum weight of 40kg (including the weight of the inner cabinet carcass itself).

I am on a budget with this build at home, so I'm trying to use either parts I already have or low-cost ones. I figure that I have 3 options available:

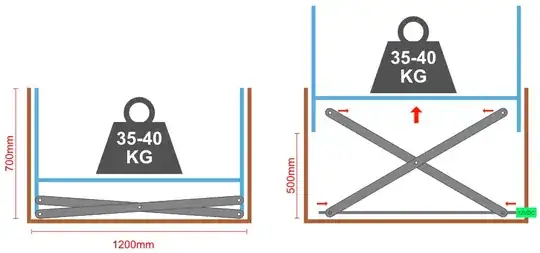

1. Motorised Scissor Lift enter image description here This will just simply be 2 pairs of arms, where the bottom pivot points are connected to a shaft that rides horizontally along a 16mm stainless steel threaded rod (powered by a small geared 12V DC motor). The top and bottom pivot points will ride along steel rails on bearing wheels. The arms will be made from 50mm wide mild/carbon steel with a thickness of 5mm.

2. Poor-man's Linear Actuator enter image description here Off-the-shelf linear actuators are horrifically expense where I'm from, so I took to understanding the mechanics involved and sought to try building one myself. My small proof of concept using the same 16mm stainless steel threaded rod (riding inside a seam-less steel pipe for sturdiness which is not shown in the image above), connected to the same motor works. However, I'm uncertain if the motor is powerful enough to turn the rod.

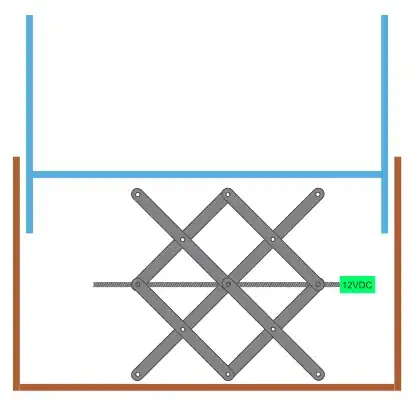

3. Scissor Lift alternative enter image description here

The above is an alternative although I'm not convinced this will be as sturdy as the first option. Plus the motor will have to ride up and down.

With each option, I aim to ensure that the inner cabinet slides along some sort of linear rail to avoid any "wobbling" as it rises and drops.

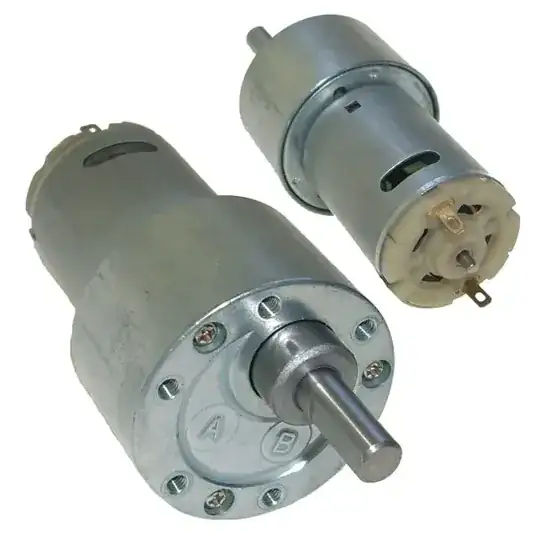

The motor I'm using rated as follows: DC GEARED ROUND BRUSH MOTOR, 12VDC, 0.6A, 1:30 REDUCTION 270RPM, 2KG/CM

enter image description here

I fear that my motor might be under-powered to achieve the necessary lift, so would truly appreciate the community's help on this and the which of the above options would be suitable. Also, please advise me if the standard stainless steel threaded rod is okay, or if a trapezoidal lead screw would be more suited.

My sincerest thanks in advance. PS - sorry for the long post!

maGz
  • 153
  • 3
  • 1
    Personally I'd use a scissor jack. Especially if you can find one commercially available. 40 kg is easy and the screw provides lots of mechanical advantage. Maybe something like this? https://www.amazon.com/LabZhang-Scissor-Platform-Scientific-Aluminium/dp/B085R8CTKG/ref=sr_1_22?dchild=1&keywords=scissor+lift&qid=1596202621&sr=8-22 – Eric S Jul 31 '20 at 13:39

2 Answers2

5

In a scissors jack design, items one and three, you'll have the least mechanical advantage when the assembly is retracted. Using drawer slides or the equivalent is a good idea, but will not provide for a balanced lift if there are loads applied that are not uniform over the cabinet's bottom surface.

Your selected motor, with a thirty to one reduction should have plenty of torque. As you've not specified any desired speed of action, one must believe that slow is okay. Slow is to your advantage as well.

If you select the vertical screw design, which is similar to many 3D printer beds, you can get away with threaded rod. It's not used in 3D printers or other devices which require precision due to backlash and imprecise manufacturing, but for your application, you need none of that.

You'd have the advantage of being able to drive all four screws by using a cogged belt and pulley system, again similar to that used in 3D printers and in my laser cutter bed lift, keeping the screw lift synchronized during use. It may be necessary to have a more powerful motor or use a finer threaded lift rod.

Finer threads would mean more available lifting power, but much less speed. Keep the rod lubricated and clean and you would avoid the higher expense of the trapezoidal nut and rod design, common in 3D printers. (I couldn't resist adding that.)

You'd be able to fine tune the ratios by changing the diameter of the cogged pulleys on the motor and on the threaded rod to provide for faster lifting or greater torque/power as required.

For the belt around four pulleys, you'll get 90° wrap without tensioners/idlers/guides and if you add guides to the system, you can set up to about 270° wrap.

Your threaded rod may not be perfect, but you can run a die to clean it or even an ordinary nut multiple times to clear the burrs. Lubricate while doing this and it should run smoothly in short order. The nut will be easier to manage, in my opinion, as the die is designed to cut, unless you get a thread-chasing die. Thread chaser is on the left:

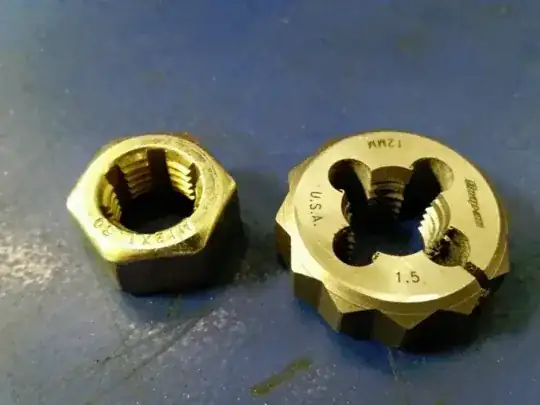

thread chaser vs thread cutting die

Even if your threaded rods have a bit of a bow or wobble, it won't affect the overall performance, again, the precision non-argument.

The motor you referenced in the comment is three times the torque and one-quarter the speed. If you change other ratios to make one equivalent to the other, the slower motor loses out in the equation.

You may be able to calculate roughly the lift rate once you know the thread pitch. That's relatively easy if you're using metric hardware.

Start with configuring a one-to-one ratio for the motor to the rods. 270 rpm is pretty fast. With a 1 mm pitch, you'd have the assembly climbing the rods at 270 mm / minute (~4 mm / second) for a (500/4) 125 second climb, slightly more than two minutes, roughly calculated. After doing all that intermediate math, I realized that 270 mm / minute and 500 mm climb is less than two minutes. Rounding doesn't always work well!

As in 3D printer design and laser cutter design, the tops of the rods should be restrained. Retainers could be as simple as a slightly larger hole in a plate. 3D printers don't use bearings, because it creates artifacts in the print, while laser cutters have bearings for the top mounts. When the cabinet is at maximum lift, the bearing at the bottom and at the lift point will restrain the rods, but at minimum lift, the ends are free to whip about.

I lack the engineering background to address the torque vs lifting power in this configuration. My method is TLAR* and trial and error.

*that looks about right

fred_dot_u
  • 6,725
  • 1
  • 8
  • 16
  • Thank you `fred_dot_u` for the comprehensive answer! Much appreciated. On the Scissor Jack designs, I didn't consider the potential "flex" that may most likely happen when the lift is extended to the top ... definitely want to avoid that! I'm not fussy about the speed, but considering the height to travel, I would say that anything less than 30 seconds would be nice – maGz Jul 31 '20 at 18:10
  • I think I'll stick to the vertical screw design, but I'll follow your suggestion of having 1 motor turn 4 screws simultaneously. I initially considered this, but had concerns over the timing belt (the same used in 3D printers - like a 10mm GT2 belt) stretching often due to the forces being exerted. Is this a concern, or would a 10mm GT2 belt riding through some toothed pulleys (and perhaps with a belt tensioner in place) be fine? – maGz Jul 31 '20 at 18:15
  • I'll go check the threaded rod that I have shortly, and tell you what the pitch of it is. Additionally I made a mistake ... the rod I have is not stainless steel, but one of those cheap zinc-plated steel ones. And just inspecting it more closely now, I see some kinks or slight chips along the thread. – maGz Jul 31 '20 at 18:20
  • Lastly, would this motor be any better: MOTOR GEARED 12VDC 0A3 65RPM MINIATURE GEARED BRUSH MOTOR, 12VDC, 1:120 RATIO, 65RPM, TORQUE=6kg.cm , 6MM SHAFT --> slower RPM though – maGz Jul 31 '20 at 18:25
  • And thank you for the warm welcome and the upvote! – maGz Jul 31 '20 at 18:26
  • 1
    edits to address your comments – fred_dot_u Jul 31 '20 at 21:48
  • Thank you! I'll stick with the vertical screw design and play around with the ratios – maGz Aug 01 '20 at 23:16
2

Either one would probably work as long as you gear it properly; but like Eric Shain, I'd advise you to go with the scissor jack because it's simpler. However, because the force varies with the angle of the scissors, you'll need to gear it down somewhat more than my suggestion.

Lifting the setup is around 201 joules (41 kg * 0.5 m * 9.8 m/s (g)), and it would exert about 402 newtons. Your motor takes 7.2 watts, which means it should theoretically take around 25 seconds. at minimum. For the motor to have enough force to lift the object, you need to jigger the ratios so that it only lifts the payload by about 20 millimeters per second.

Good luck!

Oh, and if anyone in the community sees any mistakes or miscalculations, please feel free to correct me in comments! (Thank you!)

Palbitt
  • 239
  • 1
  • 8
  • 1
    With scissor design the forces get anoyingly high with almost horizontal position (I've put some tought in the past for this kind o system). To compensate the higher forces will add too much complexity for the whole system. IMHO the best way should be with the threaded rod, and scissor would be only an interesting option if the vertical lift is way higher than what the op wants. – Leafk Aug 01 '20 at 14:05
  • @Leafk Yeah. Though if there's enough space, it might be apt to _start_ the scissor lift at a 45 degree angle. – Palbitt Aug 01 '20 at 18:42
  • Whoops. I mean, "appropriate." – Palbitt Aug 02 '20 at 17:32
