i have a question regarding on PID standards ISO 14617. Below is the attached symbol graphic, i seem cannot find anywhere what actually this symbol refer to from standards that i have looked up; PIP, ISO, DIN and BS. I would appreciate if anyone could clarify this to me and also it would be great to have a website or anything on where i could refer for more information about standards.

Thank you

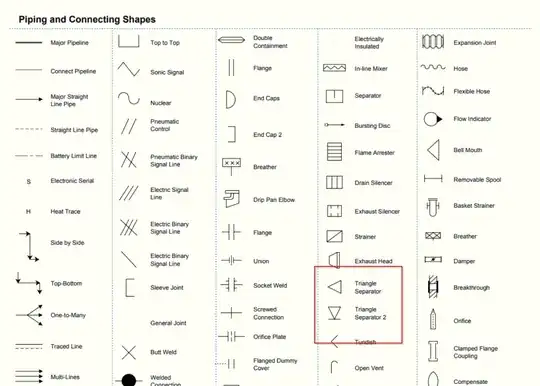

so here i attached the diagram, i did lookup to https://www.edrawsoft.com/pid/images/pid-legend.pdf

it says triangle separator, enter image description here

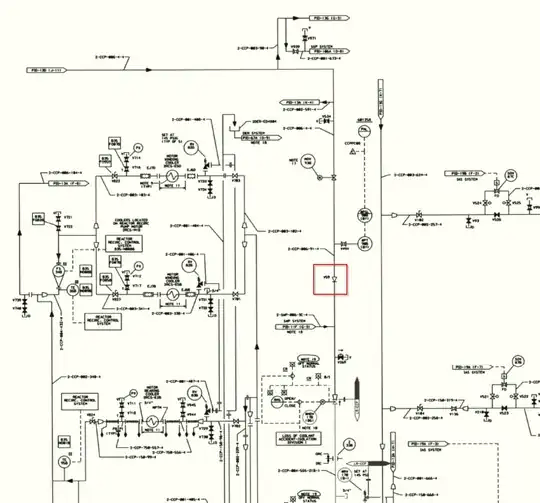

so here is the diagram that i refer to enter image description here

enter image description here

Algo
  • 2,149
  • 1
  • 17
  • 33
Sahil Syazwan
  • 23
  • 1
  • 5
  • It would help if you posted the context. i.e. the rest of the diagram. As mark says it might be a one way valve or a diode depending on the context – NMech Nov 11 '20 at 07:19
  • the line is indeed a pipe, yes? what's the medium? specific industry? – mart Nov 11 '20 at 16:12
  • Thank you for your replies, i already add a diagram that i refer to, yeah it is a pipe. This is closed loop cooling water if i not mistaken. – Sahil Syazwan Nov 12 '20 at 01:11
  • I doubt it's a separator, a separator should have one mass flow in and two out. Also note that the other symbol for triangle separator looks like a pipe expansion/reduction and also shows up in the diagram where you would expect such a thing. Look if you find a check valve somewhere in the diagram, pressure side of a pump is a good place to look. – mart Nov 13 '20 at 11:06

2 Answers2

2

I would guess it's a non-standard symbol for a check valve. @NMech is correct that it looks like a diode, but that would not appear on a P&ID. A check valve is a fluid flow equivalent of a diode though. I did find a reference that shows that symbol as a check valve here.

Mark
  • 1,012
  • 8
  • 9
  • Exactly what I thought. yet the 'VS9' next to the symbol got me puzzled. – Algo Nov 11 '20 at 09:46
  • @Algo - It's hard to tell, but I interpreted that note as "V59" - valve number 59. As NMech suggests, seeing more of the diagram would help understand the context. – Mark Nov 11 '20 at 15:49
  • I think numering schemes like are common, so valve 59 or stop valve 9 seems plausible. – mart Nov 11 '20 at 16:11
  • but this is guessing around somthing the op could esily answer. – mart Nov 11 '20 at 16:11
  • Thank you guys for replying, yeah it does look like a diode. Im sorry, so already add an attachment for more diagram. V59 is the number of the valve but could not identify whether it is a standard symbol or not. – Sahil Syazwan Nov 12 '20 at 01:13
0

In process engineering, you may use it as a check valve, although the most common used symbol for check valves is:

enter image description here

The symbol in the OPis most commonly used in electronic diagrams, and it is used to describe a diode (there is such think as a VS9 diode datasheet).

NMech
  • 23,917
  • 2
  • 30
  • 72
  • Thank you for your replies, it is a PID not a electronic diagram. Therefore it is not diode, sorry for not giving a bigger diagram for this. It is a valve, but don't know what kind of valve is this and whether it comply to a standard. – Sahil Syazwan Nov 12 '20 at 01:15
