2

When looking at glazings within various public databases I see the fields "tir" shown often. E.g as seen below:

"glazing_data": {
        ...
        "tir_front": 0.0,
        "tir_back": null,
        ...
    }

What does this field stand for?

Jebathon
  • 123
  • 3
  • Is it https://en.wikipedia.org/wiki/Total_internal_reflection? – Jebathon Nov 20 '20 at 16:52
  • That was my first thought but I dismissed it as it never applies to glazing because we never use it in that mode (looking through the edge of the glass). The air-glass-air refraction can't generate total internal refraction - unless the gasses are different on each side of the window. Post a link. – Transistor Nov 20 '20 at 20:06
  • Could you point us to the database you got this example from? – Wasabi Nov 21 '20 at 00:07
  • Have you considered: thermal infrared? – Fred Nov 21 '20 at 03:46

1 Answers1

4

TIR: Thermal infrared (longwave) transmittance of the glazing layer.

Lawrence Berkeley National Laboratory has a windows program called THERM 6.3 / WINDOW 6.3 NFRC Simulation.

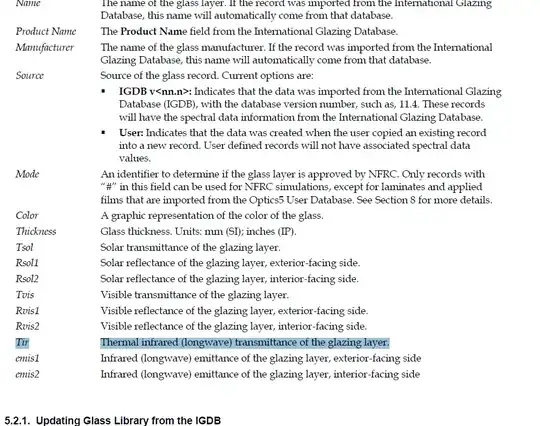

In pp 55 of this manual, there is a table referencing some properties of the glazing, including this.

pp 55

here is the Therm 6.3 prog dowmload.

kamran
  • 21,714
  • 2
  • 18
  • 38
