enter image description hereThis is an unsoldered circuit component that had two metal pieces that weren't making contact inside a thin glass tube. What is this? I haven't seen anything like it before.

Transistor
  • 9,424
  • 2
  • 19
  • 30
Steve
  • 23
  • 3
  • 3
    A photo that has the item in focus would help as would more information, such as they type of circuit the item came from. – Fred Jan 24 '21 at 08:41

1 Answers1

11

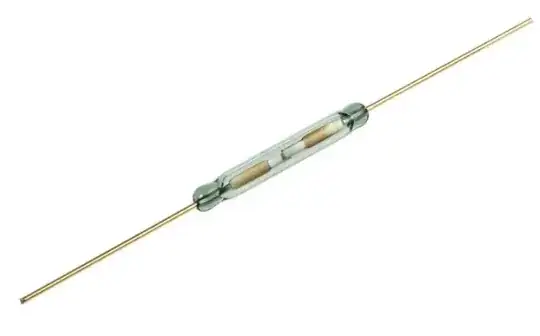

It looks to me like a reed switch (I can't be really sure though because the image is not clear enough).

enter image description here

A reed switch is an electrical switch operated (usually) by an applied magnetic field. A common example of a reed switch application is to detect the opening of a door or windows, when used as a proximity switch for a security alarm.

NMech
  • 23,917
  • 2
  • 30
  • 72
  • That's it! Thank you! The image you posted looks exactly like it. – Steve Jan 24 '21 at 04:19
  • It's also fairly common to see those used in applications where they are actuated by proximity to a permanent magnet. In fact, The name "reed _switch_" usually is reserved for the permanent magnet use-case. When it's surrounded by a coil of wire, it's more likely to be called a "reed _relay._" – Solomon Slow Jan 24 '21 at 23:19
