3

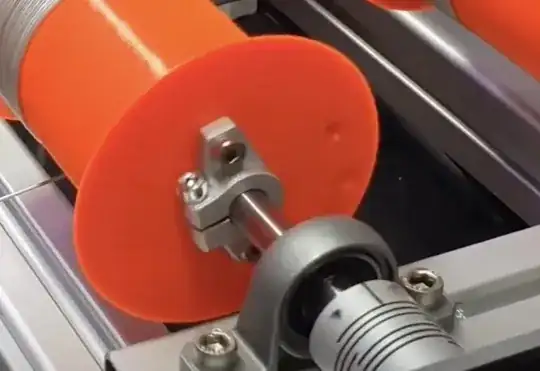

I would like to look for a shaft collar like the one used in this photo of a cable robot:
enter image description here

As you can see, there is a flexure that clamps the collar onto the shaft (as a shaft collar does). In addition, there are two screw holes where the collar can secure to a pulley.

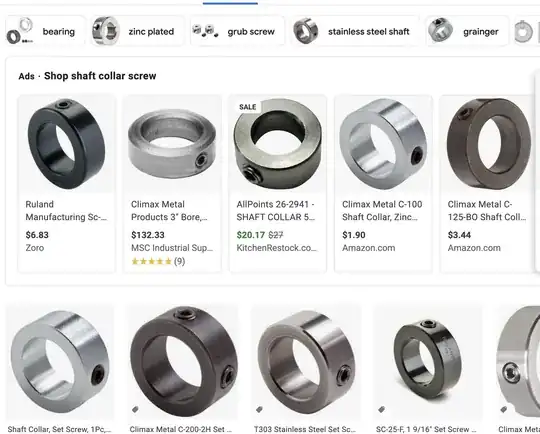

When shaft collar is typed into google you get an infinity of these, so clearly I don't have good search terms or the correct name for this type of component: enter image description here

user391339
  • 249
  • 1
  • 6
  • 1
    There is a variety of shaft collars. A good way to figure out names is McMaster, which has one of the best parts websites I can think of -- https://www.mcmaster.com/shaft-collars/construction~one-piece/?SrchEntryWebPart_InpBox=shaft+collar+ ... As NMech points out, the picture is also showing a flange feature, which may be the more unique feature in the picture. – Pete W Oct 06 '21 at 16:17

1 Answers1

2

You can look for

  • mountable shaft collar with flange or
  • flanged mount
NMech
  • 23,917
  • 2
  • 30
  • 72
