I have the book "Power system analysis and design" by Sarma. In his intro to balanced LN voltages, in chapter 2 p62 he states:

$$V_{LL} = \sqrt{3} V_{LN} \angle30º$$

but later in the chapter, p70, he states for balanced LN voltages:

$$ V_{LL} = \sqrt{3} V_{LN} $$

This is a very different statement, why is he saying that after literally saying a few pages before there is a 30º phase shift.

RSM
  • 271
  • 1
  • 6
  • 3
    So what were the paragraphs before and after each of these formulae saying? – Solar Mike Nov 30 '21 at 21:25
  • For the first equation: " In a balanced 3-phase Y-connected system with positive sequence sources, the LL voltages are $\sqrt{3}$ times the LN voltages, and lead by 30º. For the second one he says "For 3-phase generators under balanced conditions, (formula 2)". – RSM Nov 30 '21 at 21:30
  • 1
    If they have to spell it out every time it is used, what happens the first time they forget it. Both are true. First is vector represention and second is magbitude, – StainlessSteelRat Nov 30 '21 at 22:20
  • The first representation is the vector representation (in the complex plane). The second is the magnitude. ∠30° means *cos(30°) + i sin(30°)*. – El Ectric Dec 02 '21 at 15:30

1 Answers1

2

enter image description here

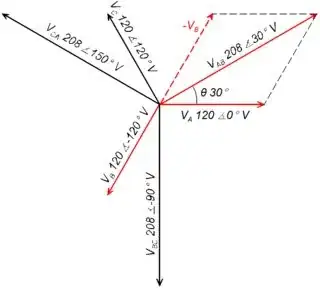

drawing by SSR

Because $V_{AB} = V_A - V_B$ (Vector Subtraction). Dashed line is $-V_{B} = -(120 \angle -120° V)$ $= 120 \angle 60° V$. Vector addition of $V_{A}$ and $-V_{B}$ gives line voltage $V_{AB} = 208 \angle 30° V$

In a three-phase, wye connected system the line-to-line voltage (line voltage) $V_{LL}$ ($V_{AB}$, $V_{BC}$, $V_{CA}$) is $\sqrt {3}$ larger than phase to neutral voltages (phase voltage) $V_{LN}$ ($V_{AN}$, $V_{BN}$, $V_{CN}$) and leads the phase voltage by 30°.

In the first case the author is making emphasis that the line voltage is a vector (magnitude $\angle$ angle or $V_{LL} = \sqrt{3} V_{LN} \angle30º$) and the second case talks about magnitude ($ V_{LL} = \sqrt{3} V_{LN} $).

The phase angles are only relevant when looking at phasor diagrams, so they are usually left off for clarity.
