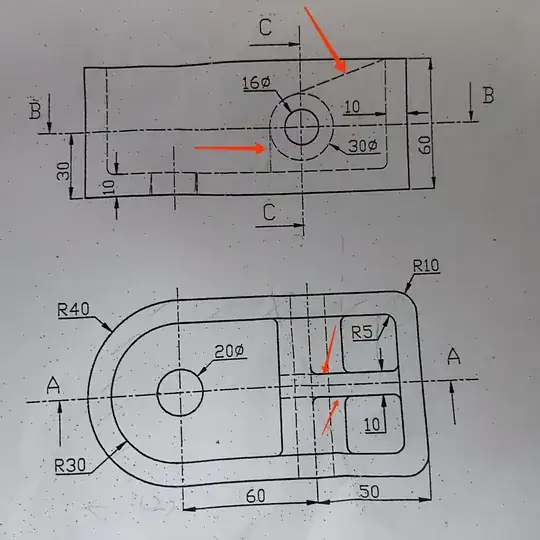

I don't understand what the hidden lines are nor the fillets tangent to the center line of the circles if someone can help with the 3d isometric that would help a lot. I

Youssef Mohamed
  • 161
  • 5

1 Answers1

4

This is just a stiffener that goes around the cylinder that runs across the walls

enter image description here

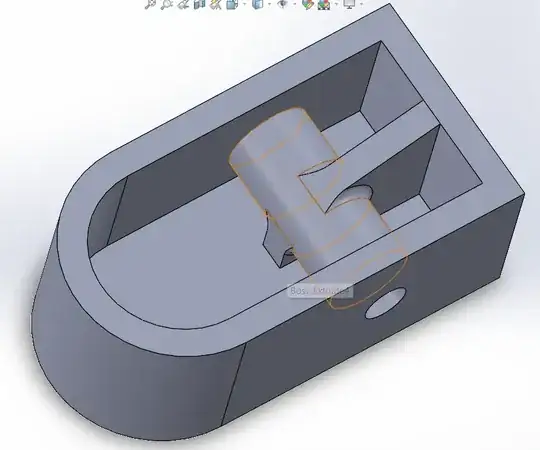

Section View

enter image description here

FUll isometric view

NMech
  • 23,917
  • 2
  • 30
  • 72
  • Ok thanks a lot , I have another question will this be treated as a rib or not because in my course when there is a rib we don't hatch it in sectional views , so should I hatch this or not ? – Youssef Mohamed Dec 26 '21 at 21:52
