The context

I was reading this article in Arxiv "The OpenPicoAmp : an open-source planar lipid bilayer amplifier for hands-on learning of neuroscience" (PDF available here) and found two diagrams.

enter image description here

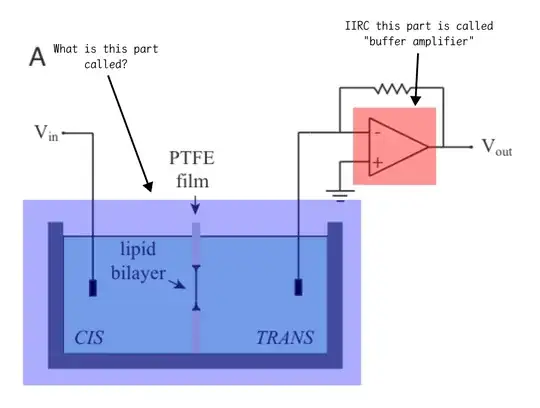

I know the type of diagrams for (B) are called "circuit diagrams", but I don't know what's the name for the type of diagram of (A). Both (A) and (B) use a buffer amplifier, but I wonder if there's a common name for the type of diagram of (A).

The question

Is there a common name for the type of diagram of (A)? If not, what's the name of the blue part called? (If I recall correctly, the red part is called "buffer amplifier")

enter image description here

Fred
  • 9,562
  • 11
  • 32
  • 44
rdrg109
  • 111
  • 2

1 Answers1

0

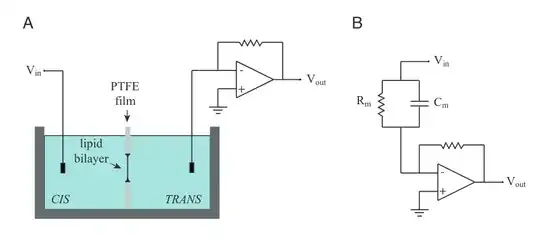

The type of diagram in blue is a "pictorial diagram" or "pictorial circuit diagram." Figure A a combination of a pictorial diagram and a "schematic diagram" or "schematic circuit diagram."

The part shown in figure A is referred to in the paper as a "bilayer chamber." It is a experimental apparatus used to measure the electrical properties of a lipid bilayer. It is not a standard component so there is no standard schematic diagram element for it. The component behaves similarly to a resistor and a capacitor in parallel, so the authors draw it that way in figure B.
