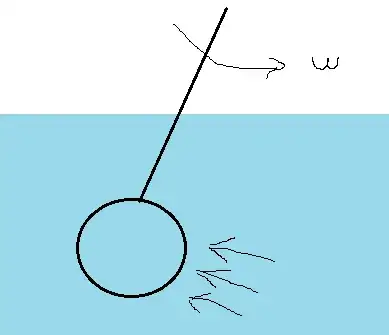

Pushing a cylinder through the water with an angular velocity of $\omega$.

enter image description here

The cylinder diameter and length are $D$ and $L$ respectively and the length from the rotation point to the center of the cylinder is $L_{arm}$.

$F_D = \frac{1}{2} \cdot \rho \cdot C_D \cdot A \cdot v^2 $

But how do I find the drag coefficient?

Babar
  • 7
  • 2

1 Answers1

1

There are tables for common shapes, e.g. in my fluid mechanics formulary I find for a long cylinder $C_\text{D}=0.3 \dots 1.3$ depending on the Re-Number.

Dominik Kern
  • 106
  • 4
