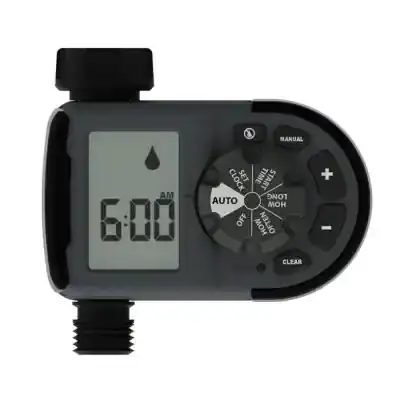

I took apart this hose faucet timer:

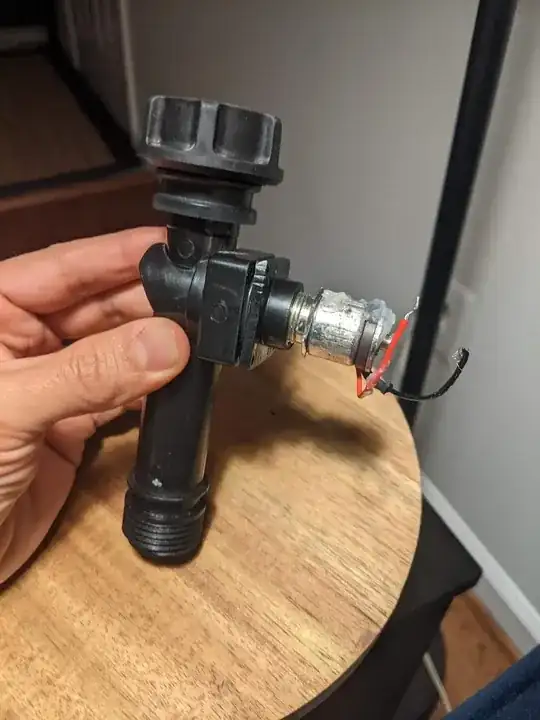

When unpowered the valve is closed. When powered (either manually or by timer) it opens allowing water to flow through. I am attempting to learn how the open/close valve mechanism works. From some research I believe it is called a solenoid valve, but the youtube videos I've watched on the matter, don't seem to cover this particular design. Pictured is the valve assembly, minus the circuit board.

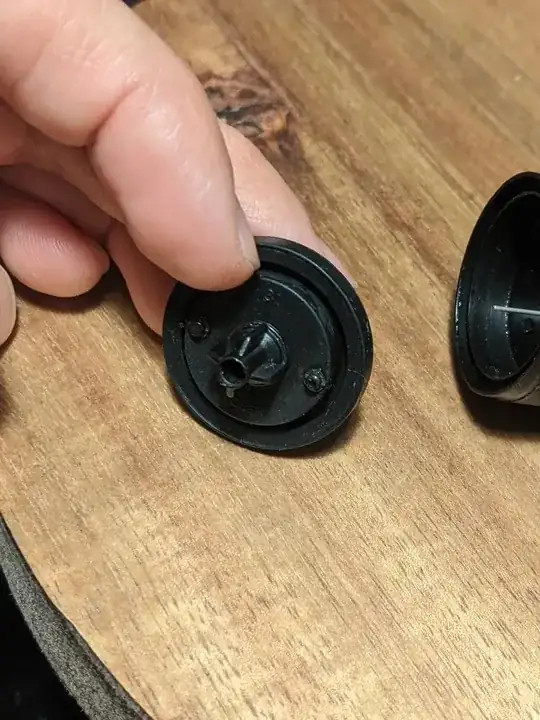

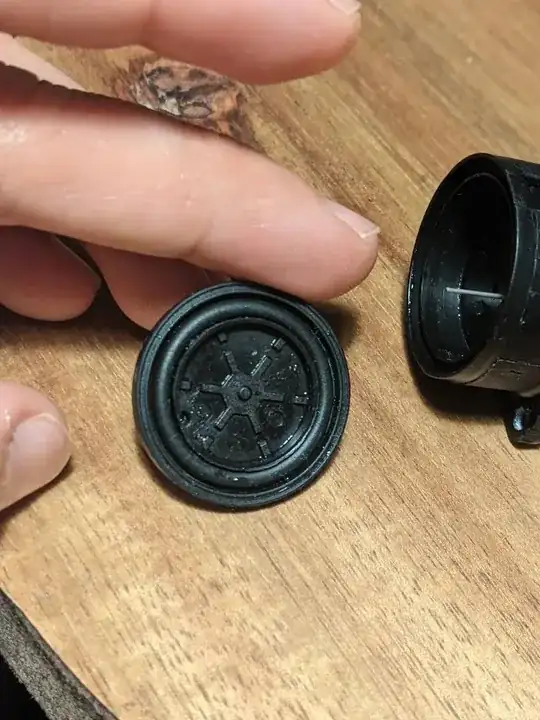

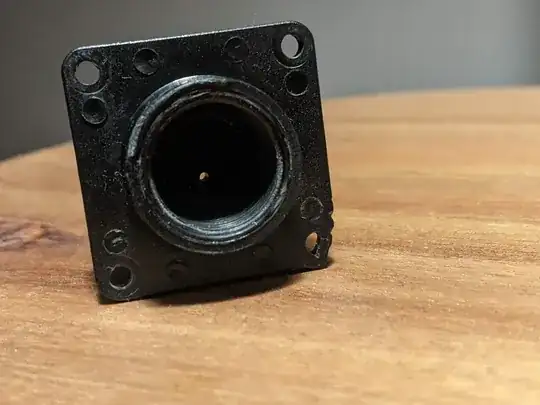

From some research I believe the silver device on the right is a solenoid. I could tell this because when it was unpowered, a piston sat inside, and when it received power, the piston/rod would pop out (I lost the actual piston before taking pictures). The solenoid screws into a hard plastic harness with a single hole in it, which I dont believe the piston even touches or covers. On the other side of that plastic housing is what I believe is referred to as a diaphragm which depresses.

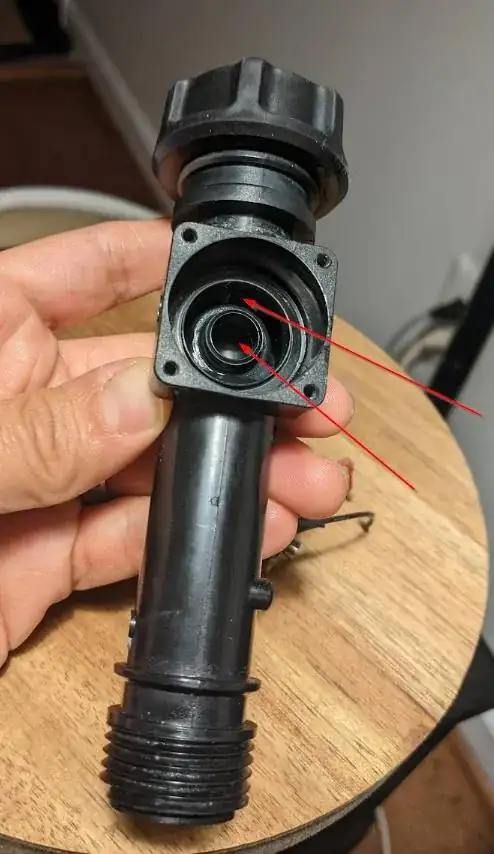

The water flows from the top inlet, through a larger outer ring (top arrow in the picture below). My presumption is that when the diaphragm is pushed back the water can then continue to flow through the middle ring (bottom arrow) and out of the bottom.
What I am trying to understand is two fold:
- Why isn't this valve normally open? If the water from the inlet is directly pushing against the diaphragm, wouldn't that pressure be enough to push the diaphragm back and allow the water to flow through?
- How does the solenoid "pull" the diaphragm back? Wouldn't the solenoid pushing out, cause positive pressure, directly pushing the diaphragm away from the solenoid, further sealing the valve?
I put together this video showing a breakdown of the valve.
p.s. Incase its not clear, I am a laymen when it comes to mechanical/electrical engineering, so please dumb down your explanation.
