I've see the same lids every day but I never really thought about their construction. There is an indent in a "Solo Travel Lid" for coffee cups that is just above the hole that you drink the coffee from.

enter image description here

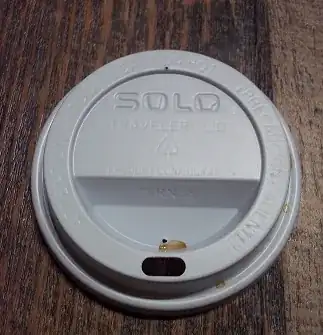

You can see the crescent shaped indent in the image. What is it for? Does it somehow increase fluid flow? Is it just a good spot for your upper lip? If so, why is there not a matching one for the nose? I tried googling this but I got no answer.

Community
  • 1
ruckus
  • 301
  • 2
  • 8

1 Answers1

25

From the "Solo Traveler" patent:

A more specific object of the present invention is to provide a lid having an opening formed therethrough to enable drinking, and having a recess formed in the lid adjacent the opening to accommodate the upper lip of one drinking from the cup

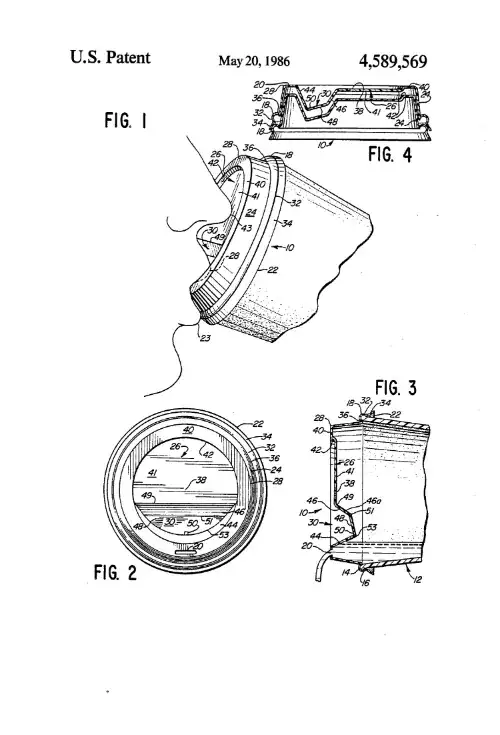

This is also illustrated in the patent diagrams. Patent Image

I came across this interesting article on the history, use, design, and styles of disposable lids. The Solo Traveler is prominently featured for its excellent aesthetics and design . The article reiterates that:

the Solo Traveler lid was designed to accommodate the nose and lip of a drinker. In accomplishing this design goal, the necessary height of the lid made it useful for foam-topped gourmet coffees.

Additionally, when upright, the recess acts as a reservoir (complete with drainhole) to catch drips/spills/splashes that might otherwise run down the cup and create the infamous coffee stain ring.

OnStrike
  • 743
  • 6
  • 17
  • 4
    Great response! That mouth is super creepy looking though – Robert Stiffler Nov 23 '15 at 14:00
  • 3
    Based on all the patent drawings I have seen, I think there is some weird requirement that engineers _must_ draw everything and are strictly forbidden from getting an artist to help. – JPhi1618 Nov 23 '15 at 14:22
  • 1
    lol creepy mouth. maybe i just have an extra large nose... :>) – ruckus Nov 23 '15 at 15:45
  • 1
    Wait... the person who filed the patent thinks that that hole is for *directly drinking from*, and not sticking a coffee straw into? Weird! – Mason Wheeler Nov 23 '15 at 16:28
  • 3
    Gotta love how there are at least fifty numbered items in the drawings. I could never come up with more than two. 1 - cup, 2 - lid. – Mr Lister Nov 23 '15 at 18:14
  • 3
    @MrLister Those numbers aren't individual items, but specific features being referenced in the claims section. And the main reason there are so many is that all patents are intentionally over-complex and simultaneously cryptically vague. – Trevor Archibald Nov 23 '15 at 19:05
  • yeah, the problem with drinking directly is that the air holes are to small to give good flow so you actually have to suck on it a little – ruckus Nov 23 '15 at 19:38
