I-beam annotation for tube on drawing

Asked Mar 02 '16 at 22:33

Active Mar 02 '16 at 22:33

Viewed 312 times

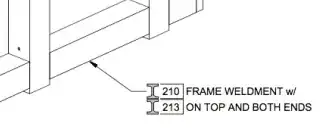

I have been sent a clip of a drawing with the following annotations on it, but I've never seen them before and can't figure out what they mean. Is there a standard interpretation of these callouts?

Initially I thought that they might be some metric notation for I beams with the height shown in mm, but weld callouts on the drawing use fractional inches and american electrode designations. Furthermore the members they refer to are rectangular and square tubes, not I shapes.

There is some ambiguity if the material in question is steel or aluminum (an email said aluminum but the electrodes for welding are steel.)

I will obviously also contact the person who provided the drawing, but they got it third hand so it may take a long time to get to the source.

asked Mar 02 '16 at 22:33

Ethan48

4,511
16
41

What is the context of the drawing? – William S. Godfrey- S.E. Mar 03 '16 at 01:38
It's a sort of wall that holds up a large display. – Ethan48 Mar 03 '16 at 02:29
1

Is there a a bill of material where the numbers shown here may be line numbers or piece marks? – hazzey Mar 03 '16 at 03:46
Not on the piece of the drawing I got, but like I said it isn't the whole package. Piece marks is an interesting possibility. It's a pretty simple structure, so it would kinda surprise me if there are 213 parts, but it's definitely plausible. – Ethan48 Mar 03 '16 at 04:17
@Ethan48, did you ever figure this one out? – William S. Godfrey- S.E. Mar 05 '16 at 13:22
@WilliamS.Godfrey Not conclusively although the more I think about it, the more piece marks makes sense to me. – Ethan48 Mar 05 '16 at 14:44
