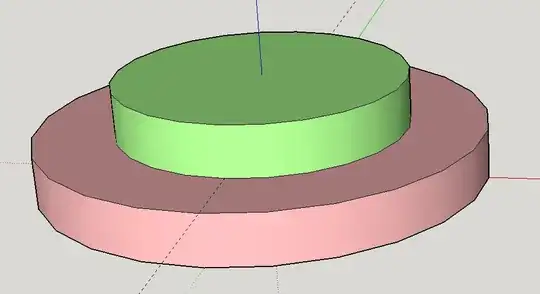

I have the following to wheels that rotate on the same axis:

enter image description here

Assuming that they are stuck together, if I rotate the green one the red one rotates at the same speed and when I stop the green one the red one stops.

I'm looking for the name of the mechanism that makes it so that when I stop rotating the green wheel and I hold it in place, the red one keeps turning.

PS: I'm building a flywheel (represented here by the red wheel) and the green wheel here is connected with a belt to a crank. I want to make it so that the flywheel keeps turning even when the crank is fully stopped.

Chris Mueller
  • 6,386
  • 1
  • 26
  • 54
Julian
  • 163
  • 5
  • 1
    The answers are correct; just thought I'd point out that you can find mechanisms like this in the rear hub of a bicycle and in the connection between a starter motor and the engine of an automobile. – Carl Witthoft Mar 03 '16 at 15:37
  • 1
    To add another fun fact along with Carl's, it's this freewheel clutch that gives a bike it's characteristic clicking while the rider coasts. – William S. Godfrey- S.E. Mar 04 '16 at 01:07

3 Answers3

5

It's called a "freewheel" or "overrunning clutch".

Dave Tweed
  • 6,824
  • 1
  • 19
  • 34
5

Freewheel Clutch or
One-Way-Bearing or
Sprag Clutch:

enter image description here


More information:
Freewheel Clutch Types
Sprag Clutch Information
Cross+Morse Freewheel Clutch Catalog

ericnutsch
  • 7,689
  • 1
  • 9
  • 28
0

Another solution which is based on spur gears+springs rather than a clutch

Another solution which is based on spur gears+differentials rather than a clutch

Found using the keyword "rotation rectifier" (since it's the mechanical equivalent of an electrical rectifier in which alternating current is converted to direct current).

Mister Mystère
  • 567
  • 3
  • 12
  • Both of those mechanisms use ratchets to prevent reverse motion of a shaft. None of this is relevant to the original question. – Dave Tweed Mar 08 '16 at 16:11
  • I was looking for that term in english, thanks. I beg to differ, as the OP has asked for a way to let the driven part rotate freely when the drive is removed, which is clearly demonstrated at least in the second solution at https://youtu.be/-p8zrvU-cYE?t=2m3s. Though I admit wear and load friction on the drive is not ideal, this is still a solution. – Mister Mystère Mar 08 '16 at 16:58
