I'm trying to use a 1500 RPM-rated electric motor to accelerate a (light, 25kg) shaft up to 50 000 RPM. At these speeds I figure using a belt system or roller chains is out of the question due to wear and friction; are these kinds of speeds possible to achieve reliably with a mechanical transmission or do I need to turn to hydraulic transmission? Or what is an efficient way of achieving this?

Fred
  • 9,562
  • 11
  • 32
  • 44
Thomas
  • 165
  • 4

1 Answers1

2

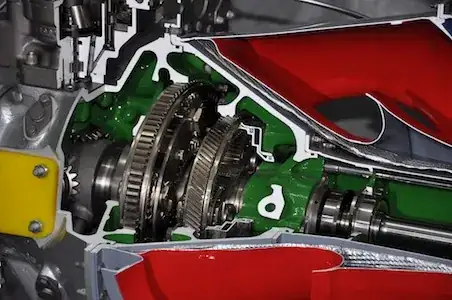

It sounds like you need something like a turboprop transmission operating in reverse. These are generally planetary gearboxes for good balance at high speeds.

enter image description here
