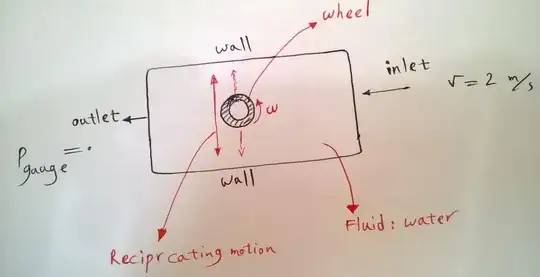

I want to model the following case(Attached picture)

enter image description here

This case have reciprocating and rotation motion. Is it possible that this case models in Fluent or CFX without writing Code?

How i set this reciprocation motion in CFX? Is it possible that give me related paper and useful links and tutorials about this case? I found documentations about this case but don't found tutorial about this case.

706Astor
  • 1,054
  • 1
  • 8
  • 19
user19061
  • 899
  • 10
  • 13
  • In fluent, you'd do this with a Dynamic Zone and specifying the motion with a UDF or a profile. – Dan Jun 02 '16 at 15:52

0 Answers0
