Any way to represent the file-memory relation in a Portable Executable (PE) file?

Question

I am looking for a way to automatically represent the relation between the content of a PE file and how it would be loaded in memory - either an IDA plugin, a combination of pefile script+R/SVG...

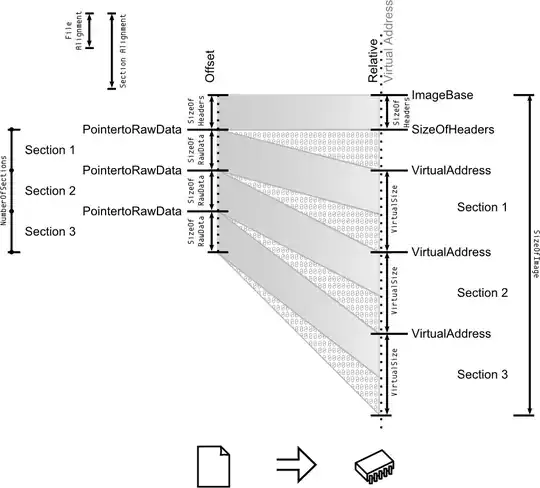

Something that could look like this (hand drawn):

enter image description here

(Not necessarily something that already supports PE, but that could be extended freely to support PE)

How did you draw this by hand ? – Mellowcandle Apr 28 '13 at 16:31 — Mellowcandle, Apr 28 '13 at 16:31
In Inkscape (FYI here is the file) – Ange Apr 28 '13 at 16:33 — Ange, Apr 28 '13 at 16:33

score 1 · Answer 1 · edited Apr 13 '17 at 12:34

1

TeX (TikZ) could be used for it. See here for some discussion and examples.

edited Apr 13 '17 at 12:34

Community

1

answered Apr 29 '13 at 11:11

Igor Skochinsky

36,553
7
65
115

1

Try to add a short explanation or description for the application here itself. – asheeshr Apr 29 '13 at 14:20

score 1 · Answer 2 · answered Apr 29 '13 at 18:53

1

You've seen CFF Explorer, right? It is a free PE Editor/viewer by Daniel Pistelli (the author of the IDA 6.x Qt GUI) that breaks out a PE file by field. This is not a vector graphic display like you are asking for, but it may serve the same need.

answered Apr 29 '13 at 18:53

dingo_kinznerhook

1,016
8
34

I know and use regularly CFF Explorer and its sequel, Cerbero Profiler, but they don't have any graphical representation for section mappings. – Ange Apr 30 '13 at 06:53
My bad. In my defense, I did state that as a disclaimer in my answer. – dingo_kinznerhook Apr 30 '13 at 20:49
2

@dingo_kinznerhook Don't feel bad, there is nothing wrong with contributing an answer. That's why I don't like the fact that answers can be downvoted negative. I makes sense to vote them down to 0, but -1 is just an insult and discourages contribution :o. – dyasta May 02 '13 at 21:24
