What is the correct orientation for the X-axis belt?

I first thought to place the smooth side down to match the tensioner bearing, but then changed it to match the motor pulley.

0scar
  • 34,481
  • 11
  • 63
  • 144
chewpoclypse
  • 213
  • 1
  • 8

1 Answers1

6

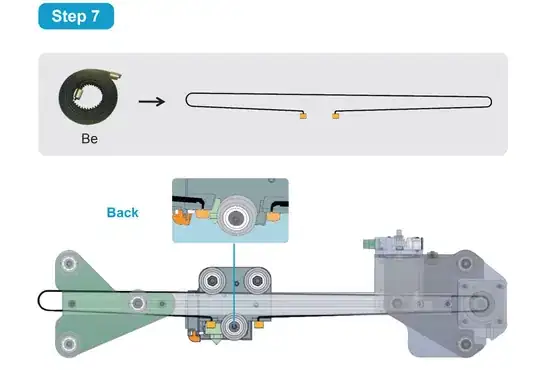

Sadly, the Ender-3 assembly instructions were not clear on step 7, what the right direction is (teeth on inner side of the loop):

enter image description here

The Belt has teeth that need to engage the teeth of the hobbed gear on the motor, just like in the preassembled Y-axis. The teeth have to go aim to the "inside" of the loop. This way, the belt will not slip on the motor side and the movements will be repeatable.
