This one is gonna be hard for me to explain, but I hope you will get it

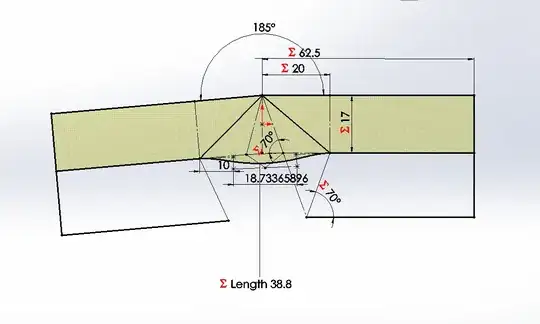

I have this sketch:
Each side of this part is half of it, to be easily duplicate / mirror / pattern
Important to note the both ends of this chain needs to be just the half (so in IRL can be connected to a round object and glued together)

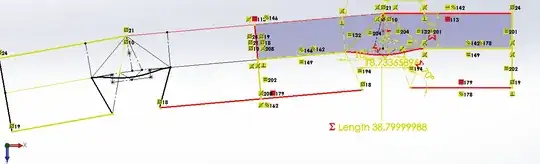

This is how a full part looks (made from two half's) (sorry for the mass, mirroring it cause all this chaos):

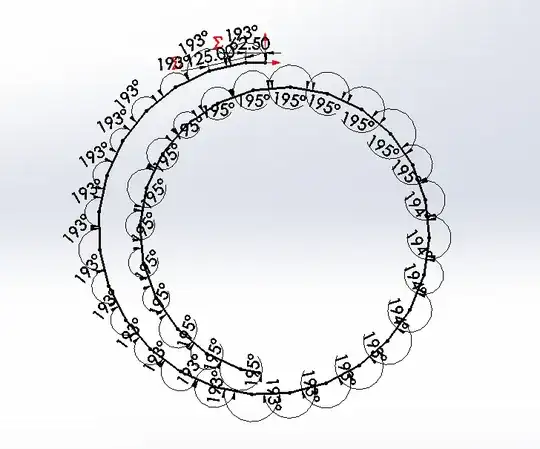

And I want to duplicate 40~ times it to this shape that I created:
The reason for it to be a spiral and not a a round circle is so save space on the mold
some guidelines and restrictions:
- each hinge need to be between 185-195 degrees, preferably as little as much variations (although necessary to achieve the spiral)
- Need to retain the ability to change the length (125mm here) , width (17mm) and number of parts
- ends need to be the half shaped
- if you have another way that is more efficient then manually doing the spiral it will be amazing
Really hope that its clear enough, appreciate your help, thanks
