In the process of spraying liquid from the nozzle, must the pressure at the outlet of the nozzle be equal to the atmospheric pressure?

Asked Nov 30 '22 at 04:16

Active Nov 30 '22 at 04:16

Viewed 16 times

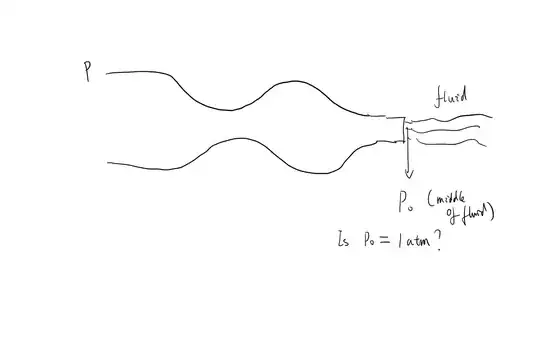

During my studies, with high Mach compressible fluids, I always set the outlet pressure to 1 atm. In that case I can roughly calculate the exit velocity. However, in the case of steady flow, is the outlet pressure still equal to 1 atmosphere? As shown in the picture: Thank you very much

asked Nov 30 '22 at 04:16

yuxuan

Are you sure the ambient pressure at the outlet will always be 1atm? – Solar Mike Nov 30 '22 at 06:30
@SolarMike I am not sure. – yuxuan Nov 30 '22 at 10:56
1

It is if your dischrge is at sea level at STP. – Tiger Guy Dec 01 '22 at 06:07

In the process of spraying liquid from the nozzle, must the pressure at the outlet of the nozzle be equal to the atmospheric pressure?

0 Answers0
